YINENGTECH CNC Oscillating Knife Cutting Machine | Carbon Fiber Prepreg & PVA Film Cutter
Equipped with Taiwan Servo Motor, AC220V/380V | Precision Cutting for Carbon Fiber Prepreg, PVA Film & Flexible Composites
- Overview
- Recommended Products
Product Business Terms
Place of Origin: |
China |
Minimum Order Quantity: |
1 |
Packaging Details: |
As request |
Delivery Time: |
14days |
Description

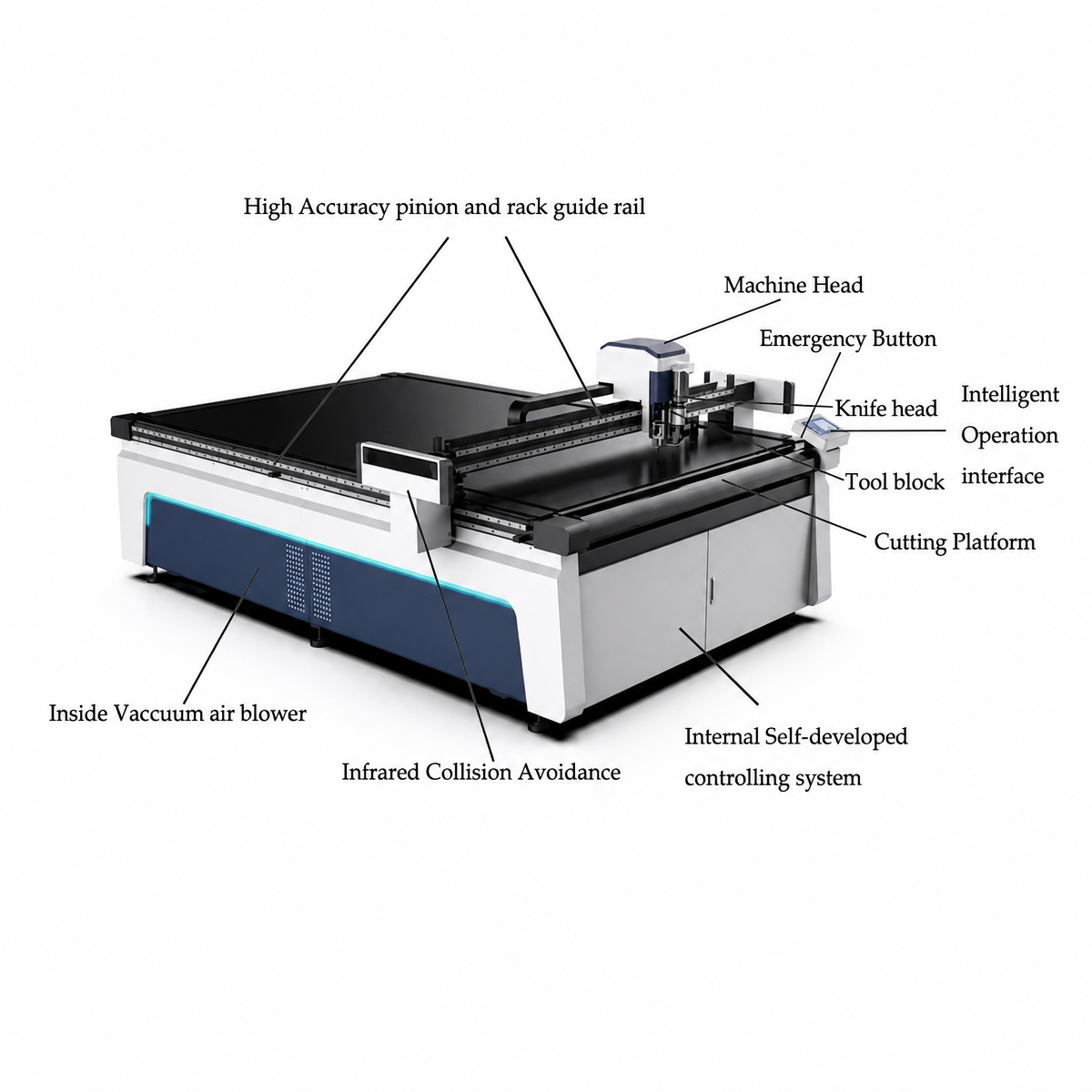

We have optimized the machine-bed structure and reinforced bed supports. The frame adopts 5mm thick square-tube welded integrated construction. Mounting holes for guide rails and gear racks are precision-milled and positioned by imported CNC machining centres. This eliminates positioning defects caused by manual punching adopted by many conventional manufacturers. The parallel-mounting precision error is controlled within 0.05 mm, which maximises long-term cutting accuracy and operational stability.
Key Features
1.Independent draft induction enables effortless cutting of small-size workpieces, ideal for single-ply cutting tasks.
2. Built-in anti-collision and auto-sensing safety devices protect the CNC oscillating-knife cutter during full-speed operation.
3.Core pneumatic, electrical and control components are sourced from globally renowned brands to guarantee reliable performance.
4.Optimised for small-batch production. It reduces production costs without compromising cutting speed and dimensional accuracy.
5.Delivers stable and repeatable precision even when processing complex patterns and intricate contours.
6.Broad material compatibility, works with a wide variety of flexible materials including carbon-fiber prepreg and PVA film.
7.Streamlined mechanical design with fewer moving parts, minimising downtime. Simple installation and straightforward routine maintenance.
Specifications
Model (Customizable) |
KS-D1625 |
Working area |
1600*2500mm |
Rated power |
11kw |
Fixed mode |
Vacuum suction table (auto feeding table for optional) |
Multifunctional head |
Swiss imported knife:oscillating knife,rotary knife,kisscut,punching,V-cut,Miling cutter |
Tool configuration |
Multiple cutting knives |
Translational velocity |
800-1200mm/s |
Cutting speed |
200-1000mm/s(according to different cutting materials) |
Cutting thickness |
≤22mm(according to different cutting materials) |
Repeated accuracy |
≤0.1mm |
Capacity |
2GB |
Transmission system |
Imported(Digital servo motor, pinion and rack) |
Instruction system |
Touchscreen LCD display |
Voltage |
AC380V/220V 50HZ/60HZ |
Machine descriptions

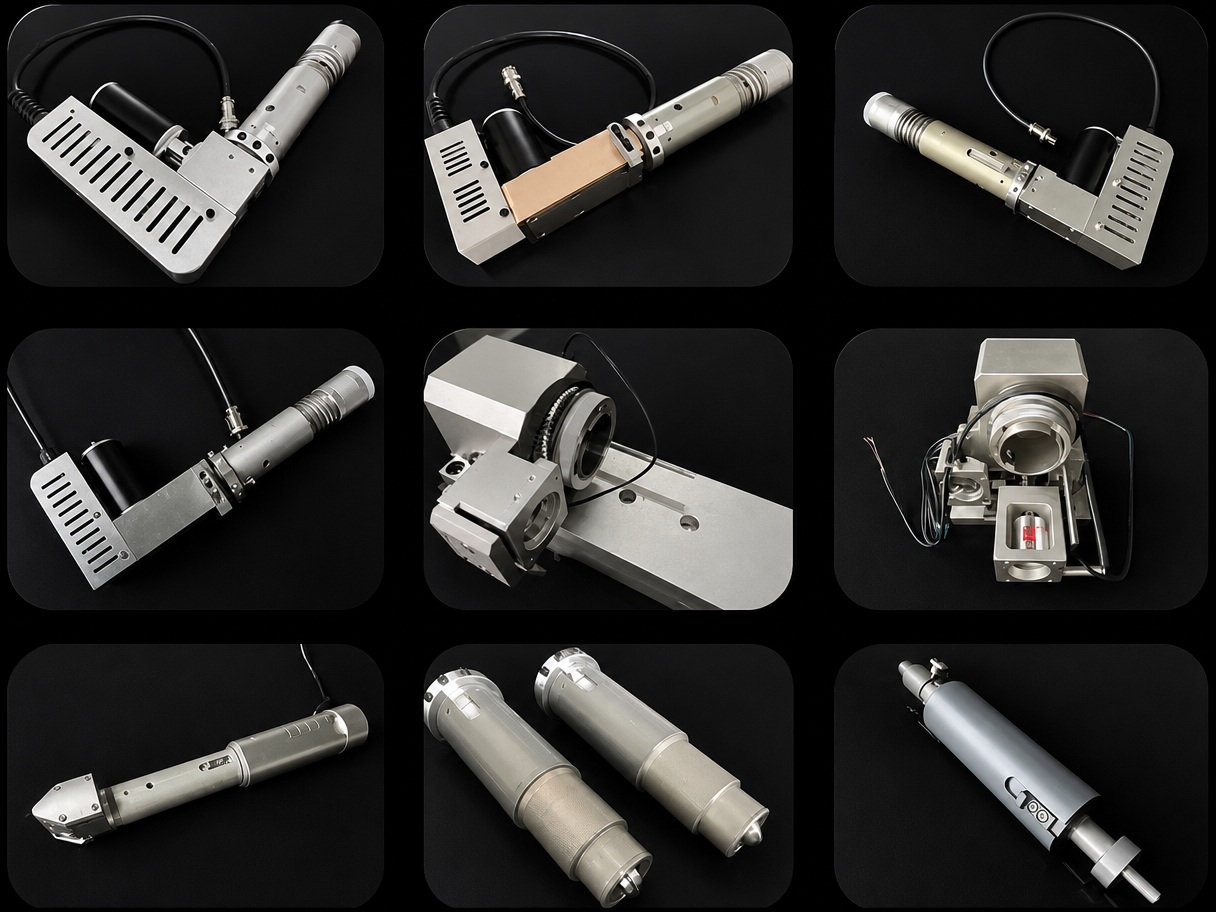

1.Supports multiple sets of tool modules
Vibrating knife, round knife, punch knife, drag knife, brush, inkjet
2.Supports over ten types of tool modules for cutting
3.Circular feeding conveyor
4.Imported original servo motors from TECO (Taiwan, China)
5.Taiwan Yintai linear guide rails German sixth-grade precision rack Quieter, faster
6.German Henrich Sixth-grade precision rack
7.Yintai, Taiwan(China) Sixth-grade precision guide rail
Machine details

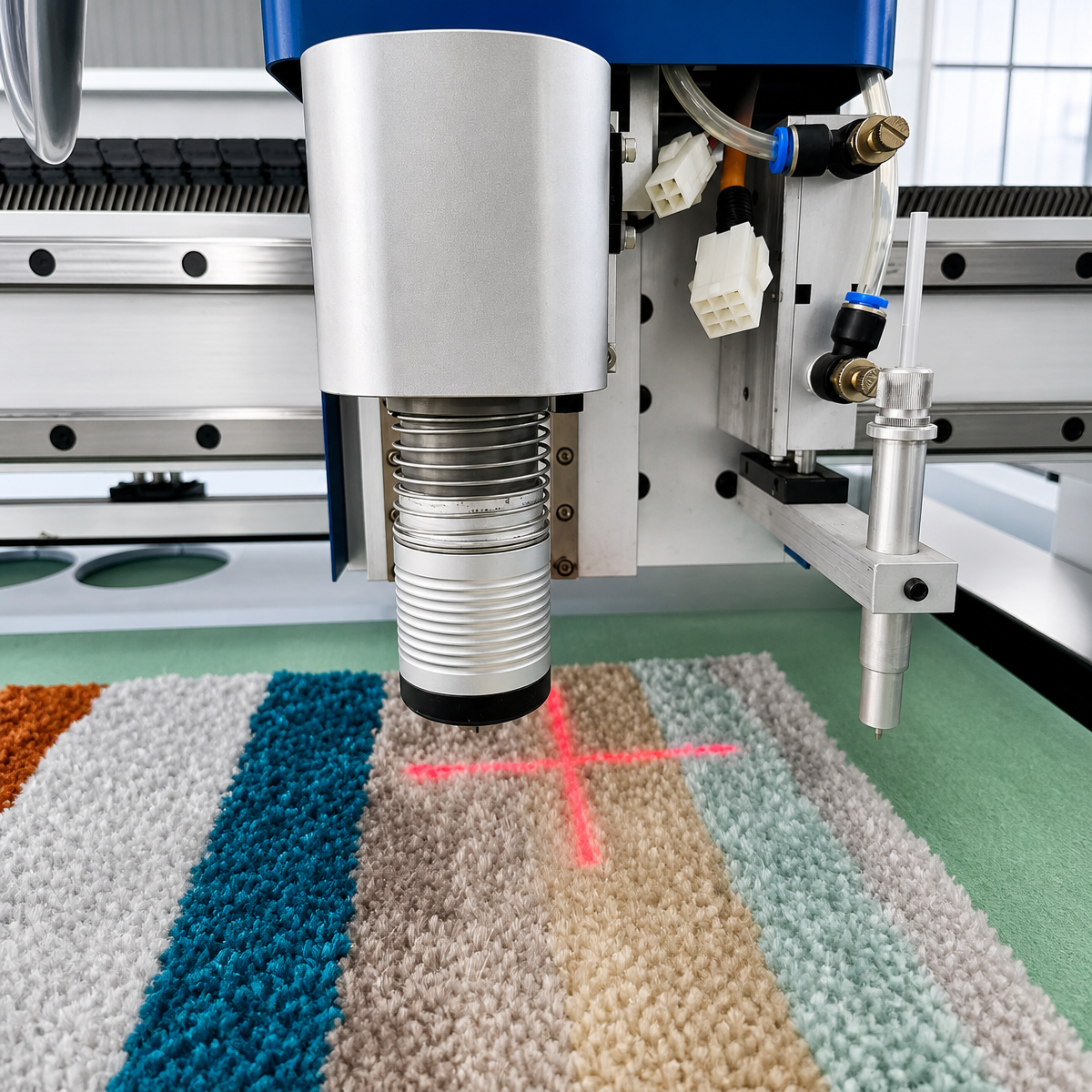

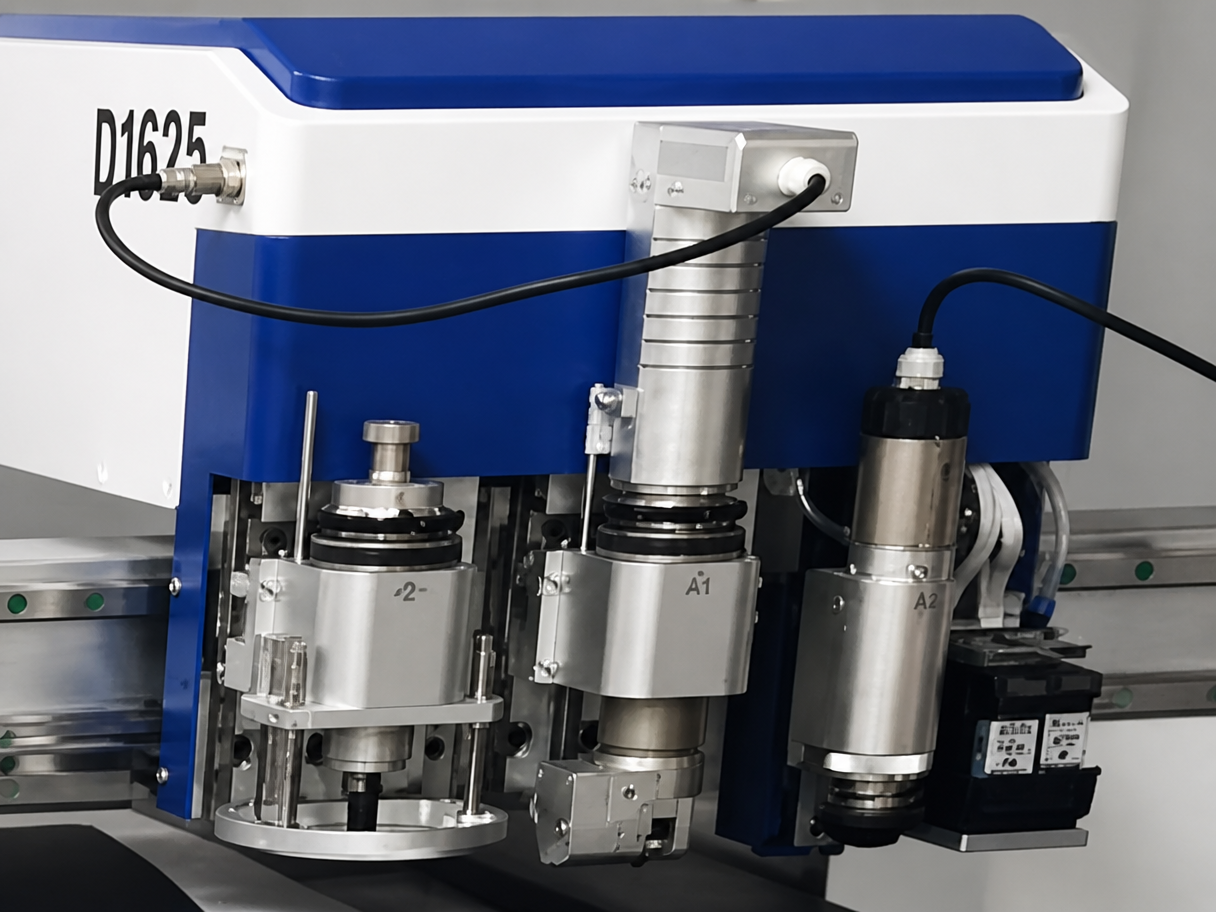

1. Multi-tool Module Compatibility
Equipped with multi-functional tool holders, the machine supports multiple tool modules including vibrating knife, round knife, punch knife, drag knife, cleaning brush and inkjet marking module. It covers diverse cutting, punching and marking processes to meet different material processing requirements.
2. Rich Cutting Process Support
Compatible with more than ten types of cutting tools and processing methods, realizing one machine for multiple purposes and greatly improving production flexibility.

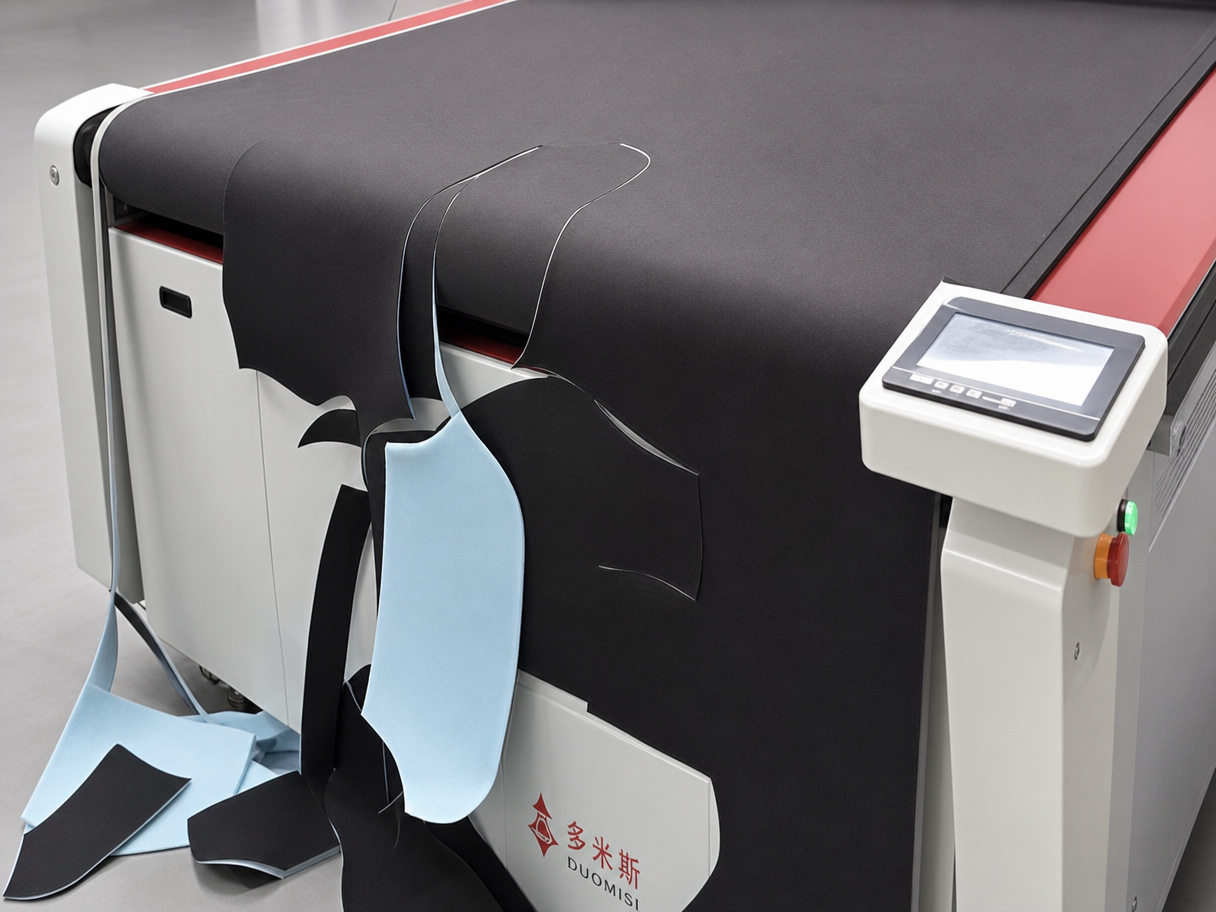

3. Circular Feeding Conveyor System
Adopts efficient circular feeding conveyor structure, realizing continuous feeding and uninterrupted cutting, effectively improving overall production efficiency.

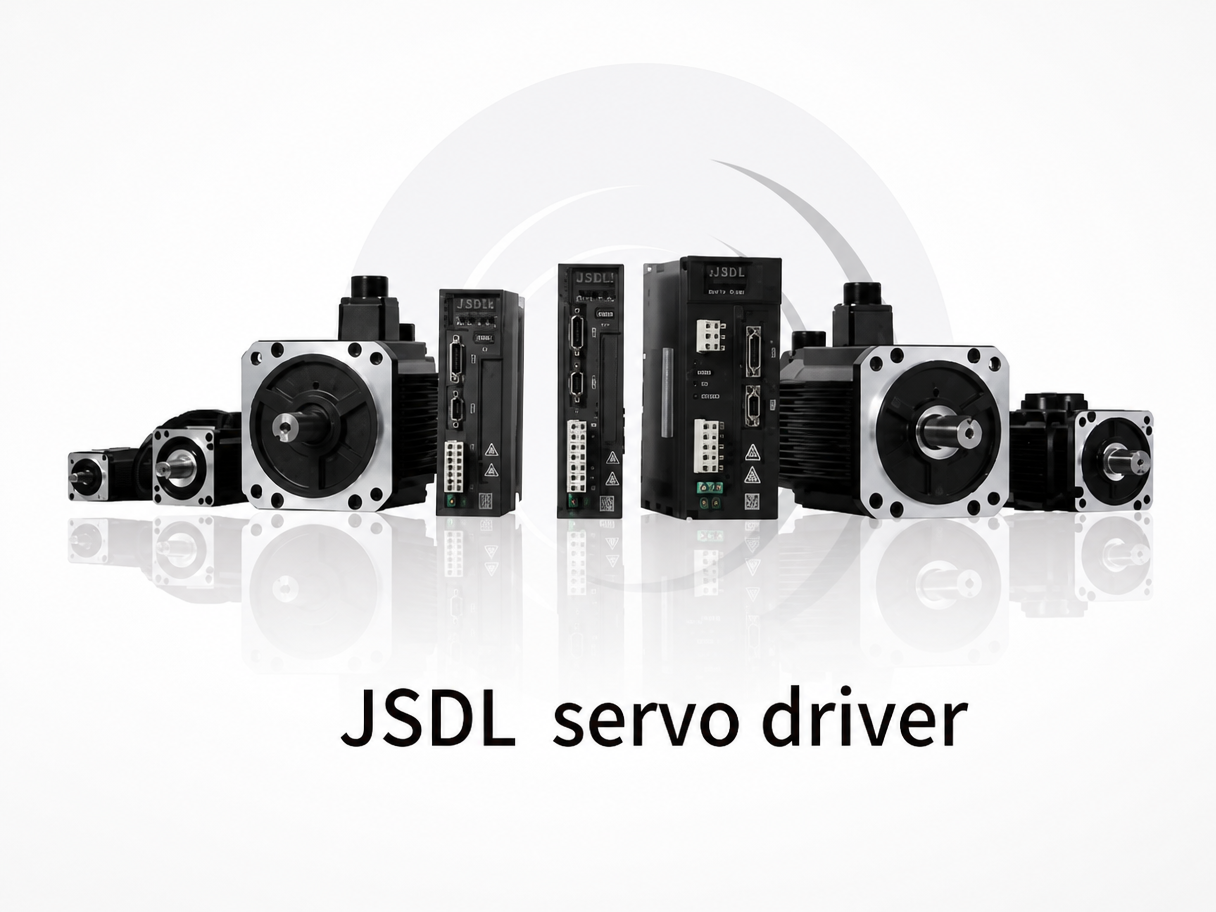

4. High-performance Servo Motor
Equipped with original TECO servo motors imported from Taiwan, China, delivering stable power output, sensitive response and long-duration continuous operation.

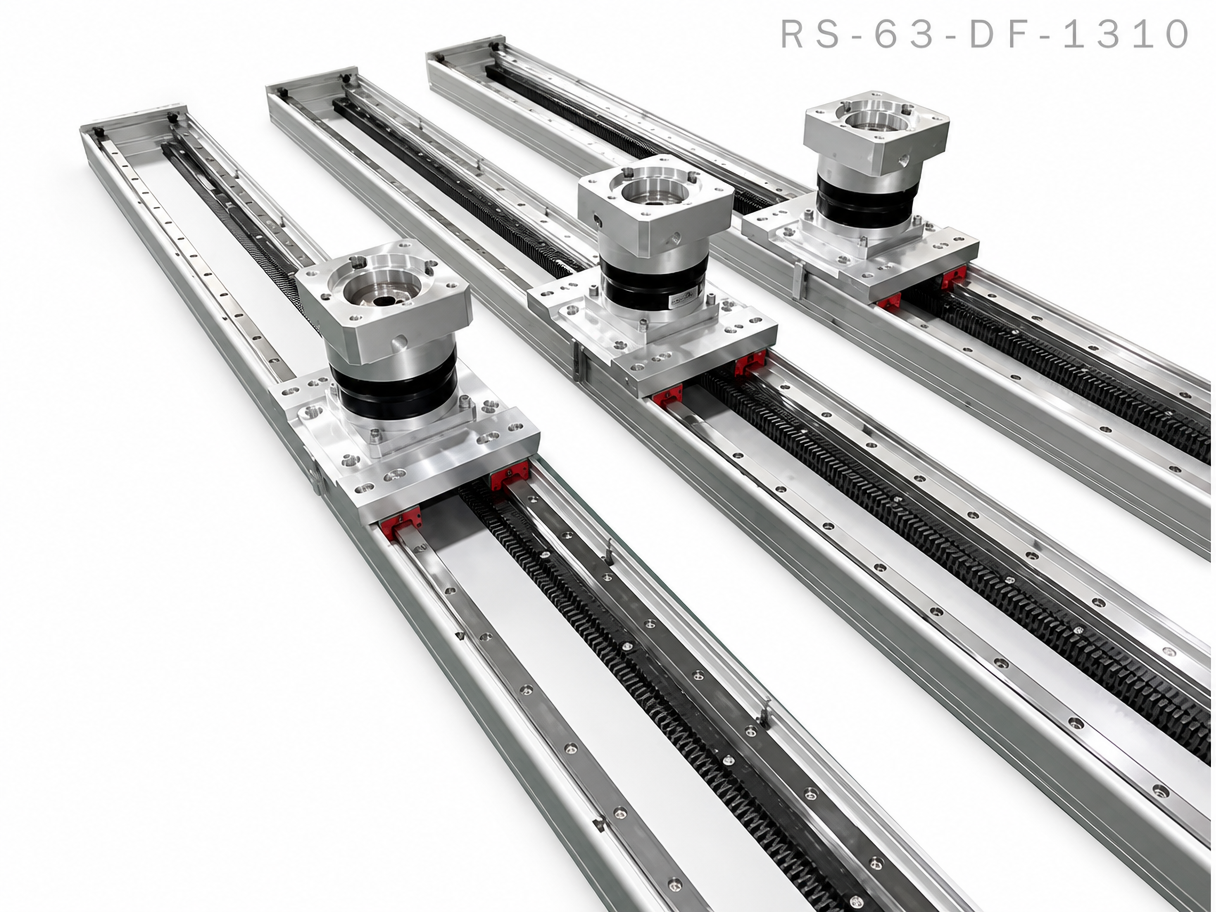

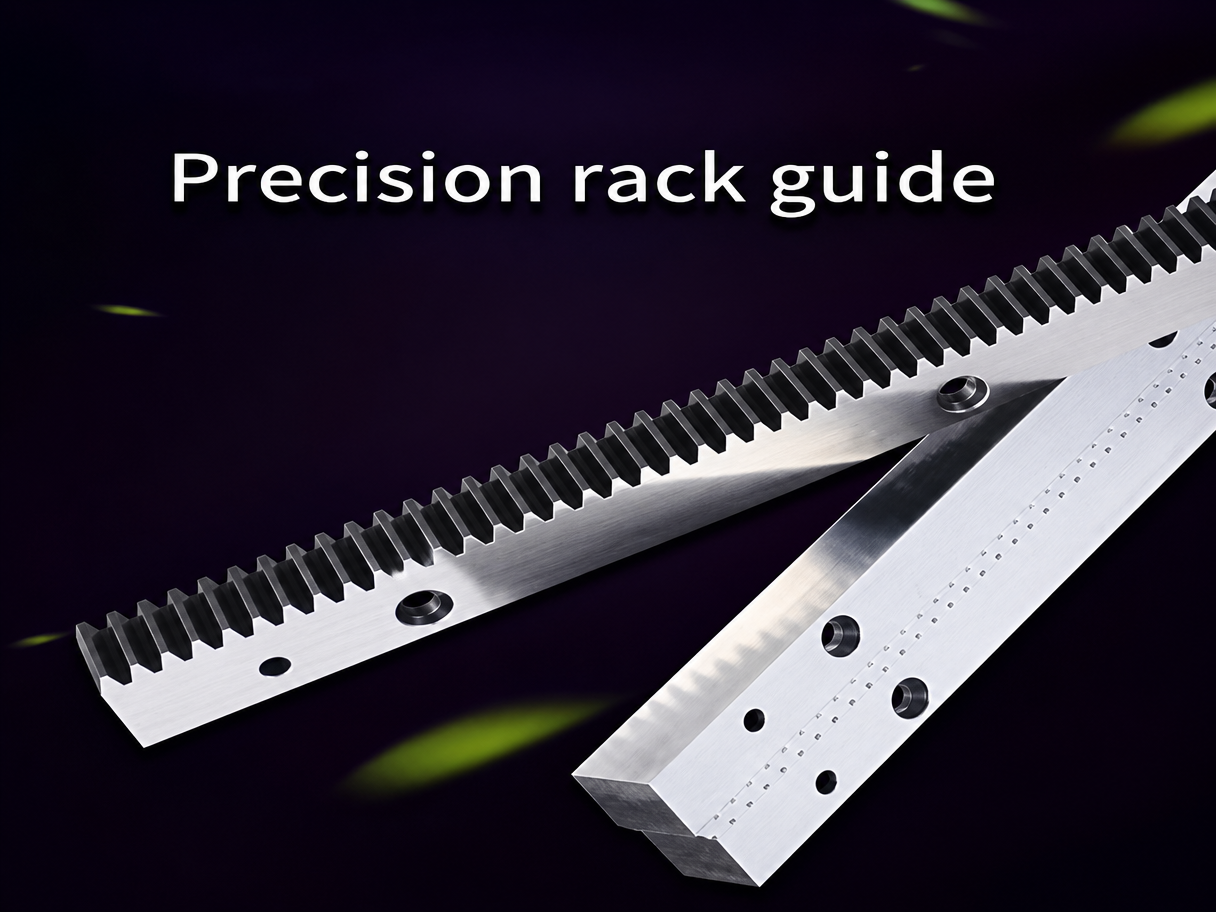

5. High-precision Transmission Configuration
Matched with Taiwan Yintai precision linear guide rails and German Henrich sixth-grade precision rack. The integrated transmission system features low noise, ultra-smooth movement and faster cutting speed, ensuring long-term high-precision operation.
FAQS
Q: Are you a factory or trading company?
A: We are a manufacturer with rich in-house R&D and production expertise for flexible material cutting equipment.
Q: Do you accept customized products?
A: Yes, customization is available. Our vibratory knife cutting machines feature stable and reliable performance, and we can adjust configurations to match your production requirements.
Q: Do you have a user manual?
A: Yes, English-language user manuals are provided. On-site installation and training services are available upon request. The machine is user-friendly, and no special professional background is required for operators.
Q: If I place an order today, when can I receive my cutting machine?
A: The total lead time consists of production time and shipping time. We are conveniently located close to seaports and railway stations for efficient logistics. Normally, production takes 7-25 days based on order specifications. Shipping time varies according to your destination port. We can offer logistics suggestions, or you may confirm details with your local freight forwarder.
Q: Can you provide OEM / ODM service?
A: Yes. As a manufacturer, we have extensive OEM and ODM experience to support your brand-oriented projects.
Q: What is your standard packing process?
A: We support sea, air and land transportation options. Our standard packing procedure is as follows:
1.All machines go through strict quality checks before shipment.
2.Thick plastic film wrapping is applied for moisture and dust protection.
3.Machines are packed in sturdy plywood cases for impact resistance during transit.
4.We cooperate with trusted freight forwarders and suitable shipping containers.
5.Goods will be delivered to your destination safely and on schedule.
