YINENGTECH CNC Auto Labeling Machine | High Speed Fabric Heat Printing Marker
YINENGTECH CNC auto labeling machine is designed for fast and accurate fabric marking. Dual servo drive for garment textile marking. It supports 800mm/s high-speed heat printing without thermal transfer ribbon, reducing consumable costs while improving production efficiency.
- Overview
- Recommended Products
Product Business Terms
Place of Origin: |
China |
Brand Name: |
YINENGTECH |
Model Number: |
KP-D200,KP-D210 |
Minimum Order Quantity: |
1 |
Product Overview

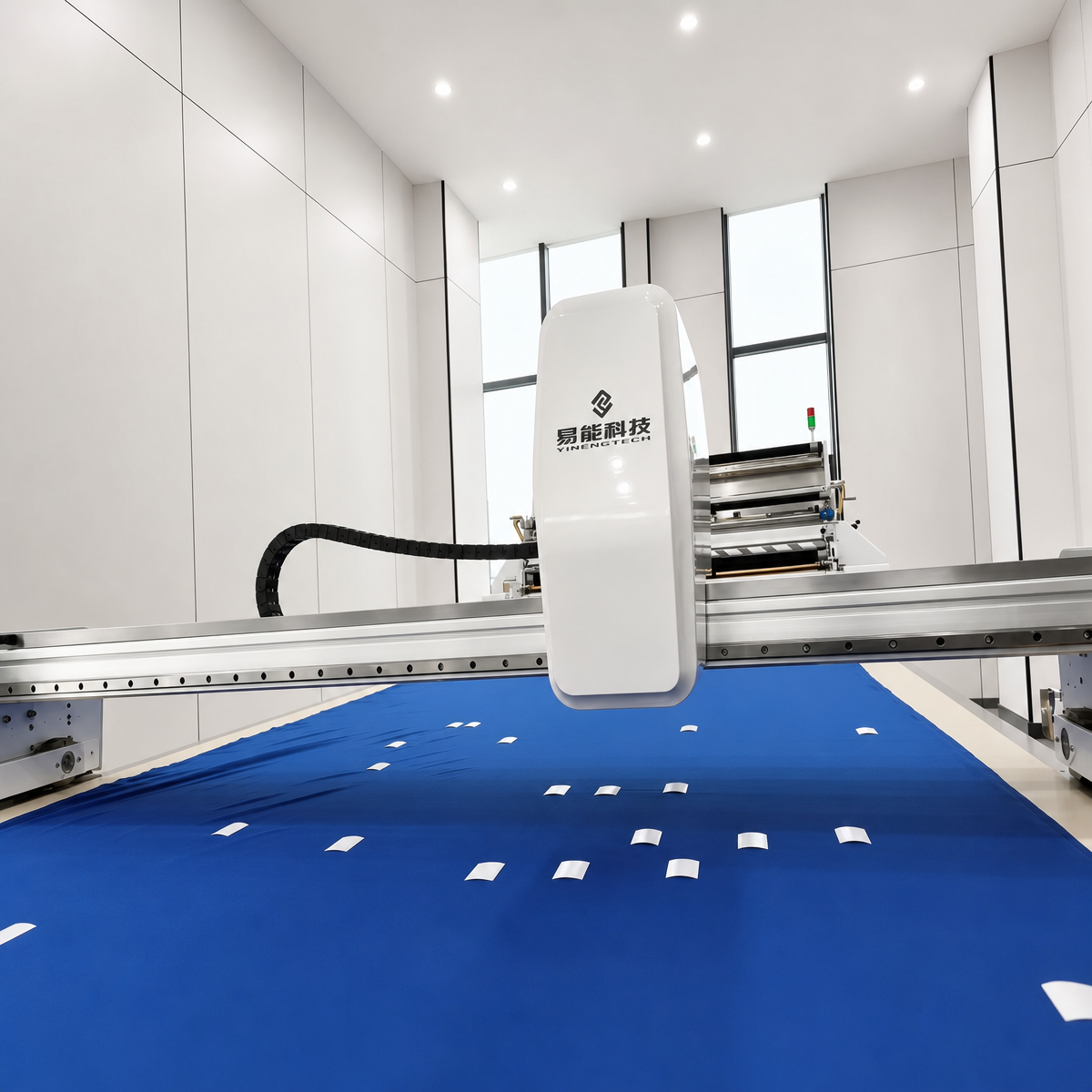

The YINENGTECH CNC Auto Labeling Machine is an efficient and reliable automatic marking solution for garment and textile production lines. It integrates high-speed CNC positioning, intelligent control and direct heat printing technology to ensure accurate label marking on different types of fabrics.
With a maximum working speed of 800mm per second, the machine can complete a large number of marking tasks in a short time, making it suitable for mass production environments. Unlike traditional thermal transfer marking equipment, this model uses ribbon-free heat printing, which lowers daily consumable expenses and simplifies maintenance.
The dual servo motor drive system provides stable power transmission and high positioning accuracy. Even during long-time continuous operation, it can maintain consistent marking quality, reduce material waste and help factories achieve more reliable production results.
FEATURES AT A GLANCE
• High-Speed Marking
Max working speed up to 800mm/s, suitable for high-volume fabric labeling and marking production.
• Ribbon-Free Heat Printing
Direct heat printing technology without thermal transfer ribbon, reducing consumable cost and operation steps.

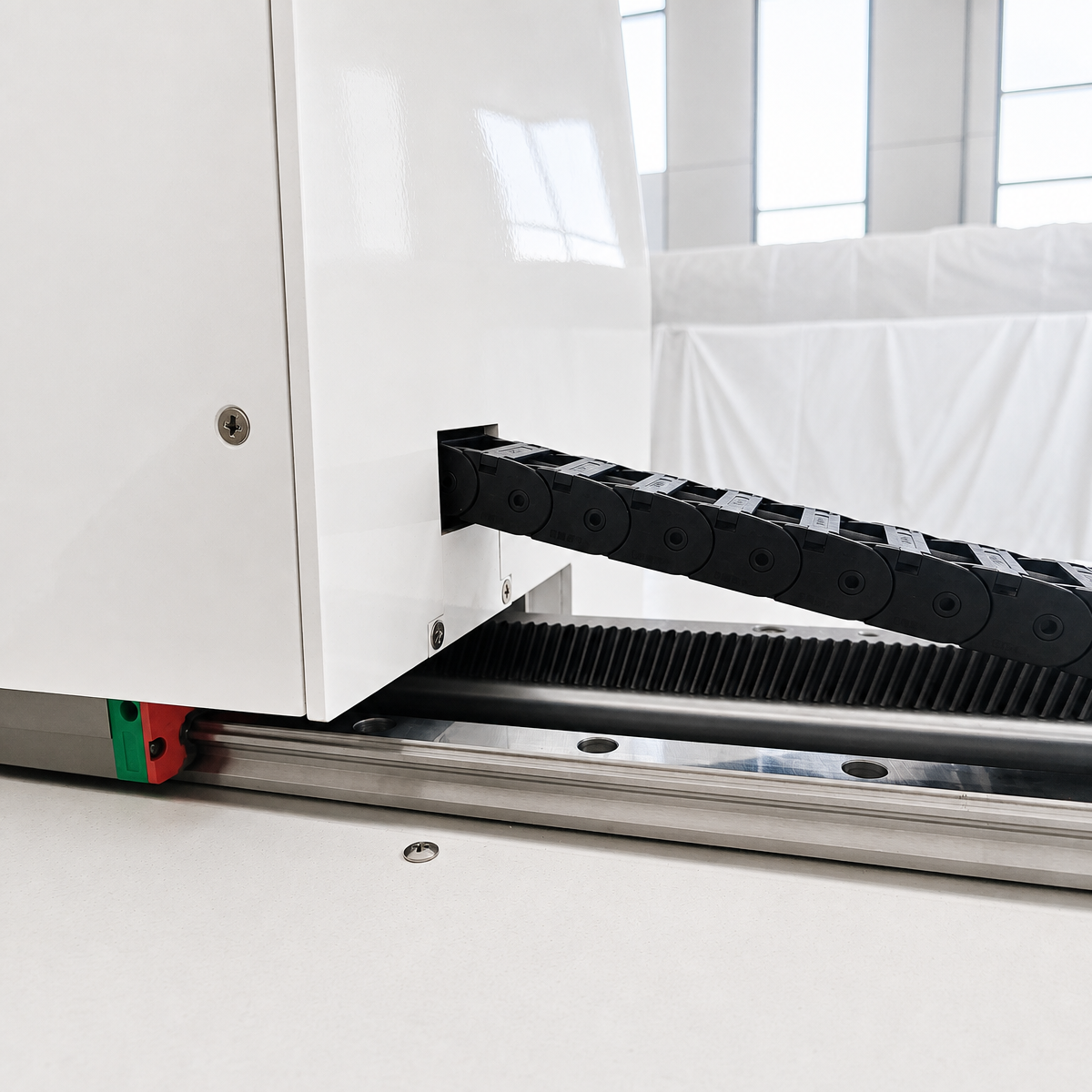

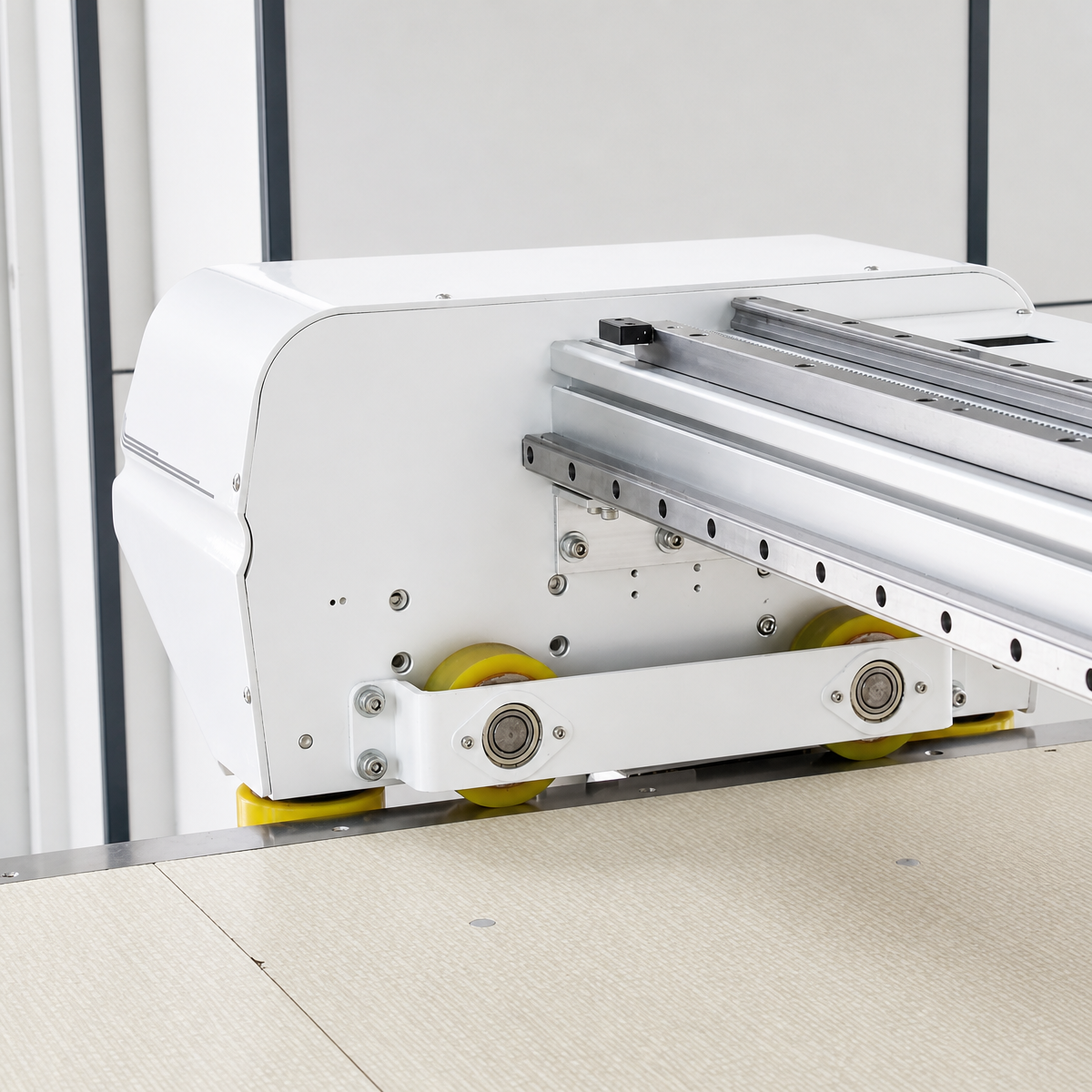

• Dual Servo Motor Control
Servo dual drive system ensures stable movement, accurate positioning and long-term continuous operation.
• Android Control System
Intelligent Android platform supports various CAD files, facilitating quick file import and production setup.

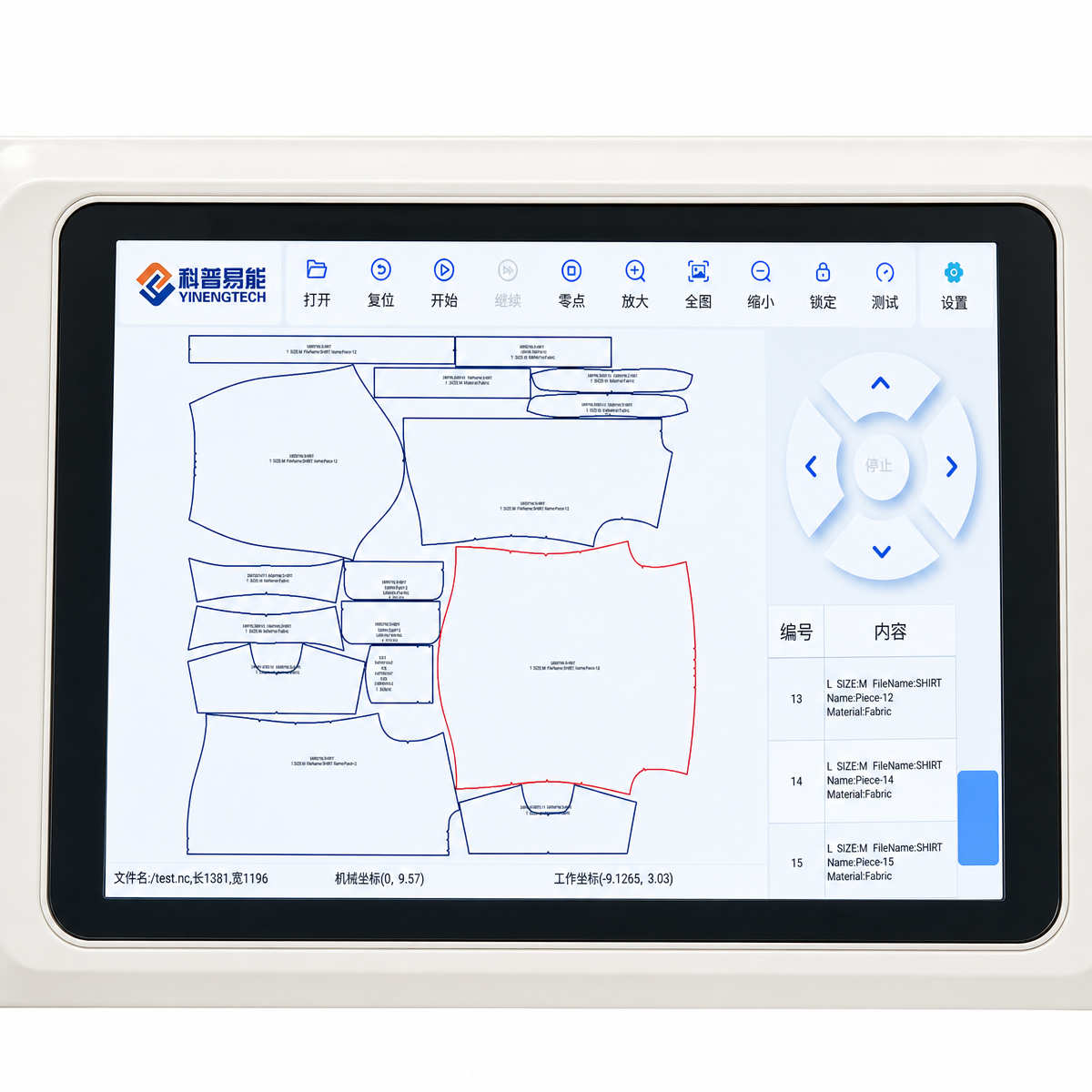

• 10.1-Inch Touch Screen
Large touch interface allows easy parameter adjustment, status check and operation monitoring.
• Remote Control Function
Supports remote operation and parameter adjustment, convenient for on-site debugging and production management.
• Data Collection and Report
Automatically collects production data and generates daily reports, helping managers track output and efficiency.
Specifications
Model.No |
KP-D200 |
KP-D210 |
Max Fabric Width |
2000mm |
2100mm |
Table Width(mm) |
223±3 |
233±3 |
Machine Size(mm) |
2900*695*555 |
3000*695*555 |
Package Size(mm) |
3050*810*520 |
3150*810*520 |
Weight |
268KG |
276KG |
Labeling speed |
800mm/s, 32pcs/min |
|
Power Supply |
Alternating current 220V/50-60Hz |
|
Spindle power |
1.5kw |
|
Max working height |
0-165mm |
|
Compatible formats |
NC/DXF/CUT/GBR/TAC/DAT |
|
Label specifications |
1000 labels/volume, 30*40mm |
|
Air pressure |
0.6-0.8MP |
|
Print method |
Thermal printing |
|
Printing head life |
About 30 million labels(3000 roll) |
|
Print resolution |
203dpi |
|
Data transfer |
WIFI or USB flash drive |
|
Operation system |
Windows system |
|
Applications:
This automatic labeling machine is widely used in garment factories, sportswear production, home textile processing, luggage factories and other textile manufacturing scenarios. It is especially suitable for customers who need high-speed marking, low consumable cost and stable continuous production.
FAQS
Q1: What is the main advantage of this machine?
A: The biggest advantage is high-speed 800mm/s marking and ribbon-free heat printing, which improves efficiency and reduces consumable cost.
Q2: Does it need thermal transfer ribbon?
A: No. It adopts direct heat printing technology, so no thermal transfer ribbon is required.
Q3: Can it work with CAD files?
A: Yes. The Android system supports all common CAD file formats.
Q4: Is the dual servo drive stable?
A: Yes. It provides stable transmission, high positioning accuracy and reliable long-time operation.
Q5: Can it generate production reports?
A: Yes. It supports automatic data collection and daily production report generation.
