YINENGTECH CNC Auto Fabric Labeling Machine
YINENGTECH CNC automatic labeling machine adopts Android intelligent system and dual servo drive. Features 800mm/s high-speed heat printing. Supports CAD file import, remote control and automatic production data report, ideal for intelligent garment fabric marking production.
- Overview
- Recommended Products
Product Overview
YINENGTECH CNC Auto Labeling Machine is professionally developed to simplify textile production procedures and improve overall working efficiency. This high-precision automatic marking equipment realizes accurate positioning and clear label printing on various fabrics, effectively avoiding manual marking errors and ensuring consistent marking quality for every textile piece.
FEATURES AT A GLANCE

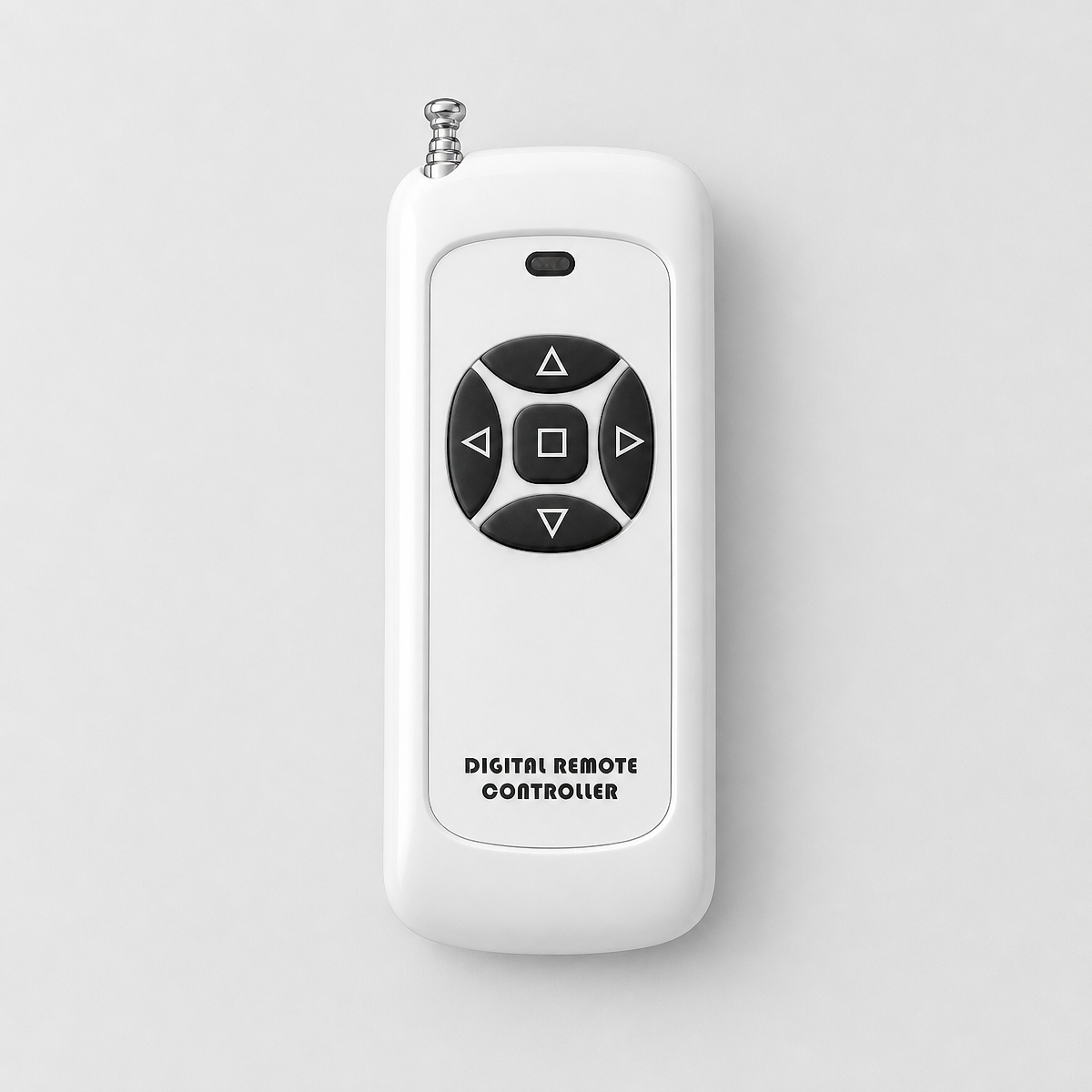

• Remote Control Operation
Support remote control for convenient on-site operation and parameter adjustment.
• Android Operating System, Compatible with Multiple CAD Formats
Powered by Android system, easily imports and processes various CAD design files.
• High-Speed Working Performance
Maximum working speed up to 800 mm per second for high-volume production.

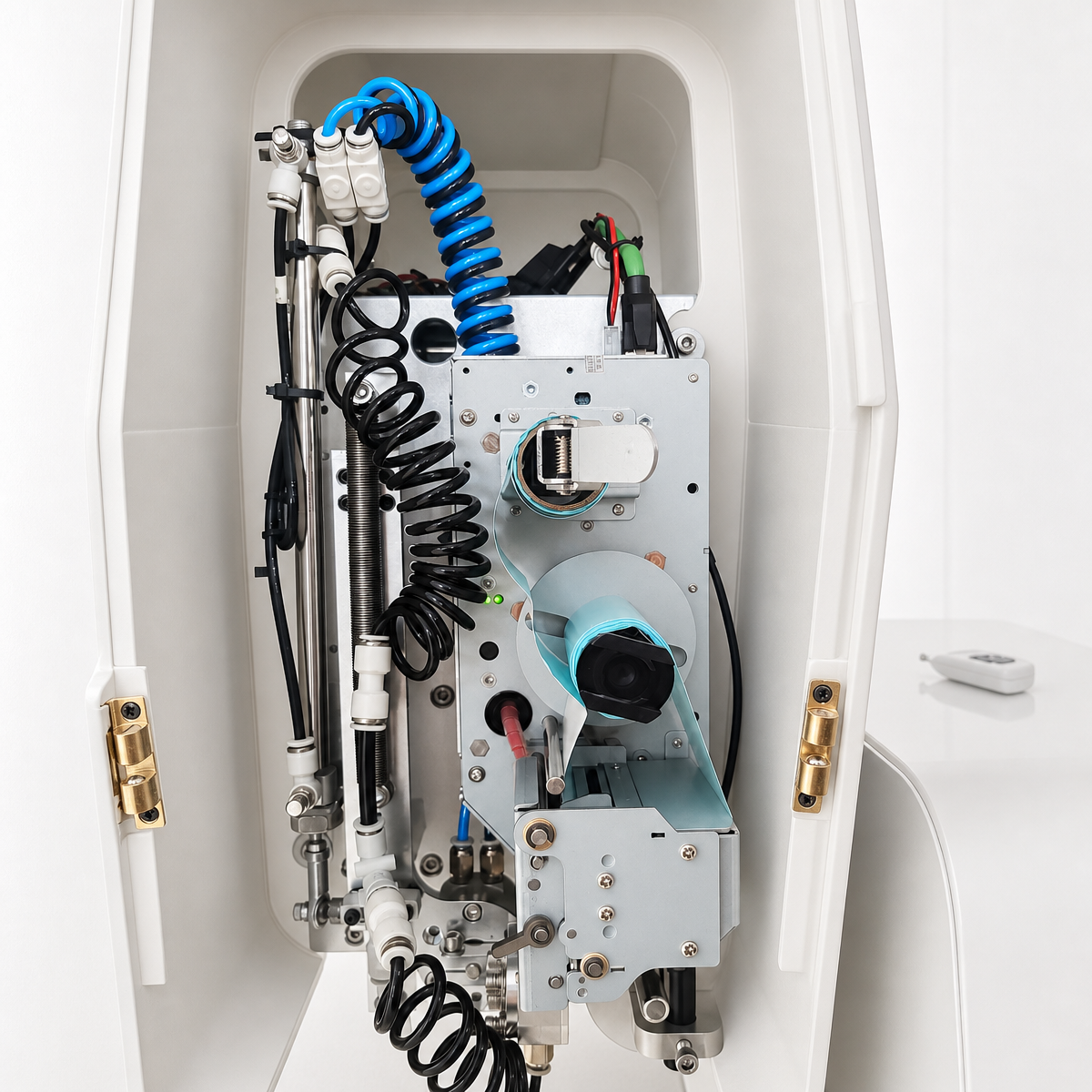

• Heat Printing Without Thermal Transfer Ribbon
Direct heat printing technology, no thermal transfer ribbon required, lower consumable cost.

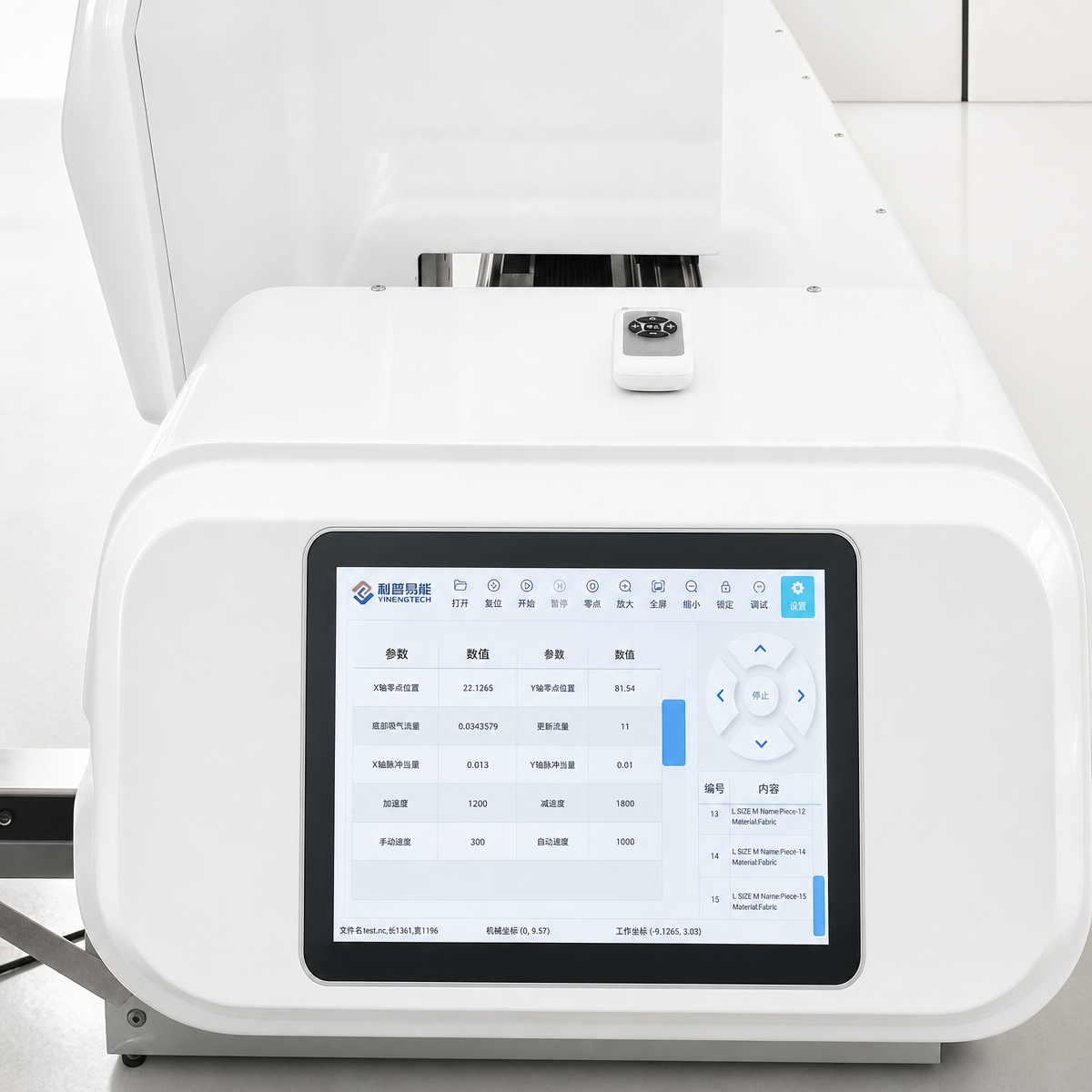

• 10.1-Inch Touch Screen
Intuitive 10.1-inch touch screen for simple parameter setup and status monitoring.
• Dual Servo Motor Drive Control
Dual-servo drive system delivers stable running, high positioning accuracy and reliable output.
• Data Collection & Daily Production Report
Built-in data statistics function, supports data collection and automatic daily production report generation.
Specifications
Model.No |
KP-D160 |
KP-D180 |
KP-D190 |
Max Fabric Width |
1600mm |
1800mm |
1900mm |
Table Width(mm) |
183±3 |
203±3 |
213±3 |
Machine Size(mm) |
2500*695*555 |
2700*695*555 |
2800*695*555 |
Package Size(mm) |
2650*810*520 |
2850*810*520 |
2950*810*520 |
Weight |
236KG |
252KG |
260KG |
Labeling speed |
800mm/s, 32pcs/min |
||
Power Supply |
Alternating current 220V/50-60Hz |
||
Spindle power |
1.5kw |
||
Max working height |
0-165mm |
||
Compatible formats |
NC/DXF/CUT/GBR/TAC/DAT |
||
Label specifications |
1000 labels/volume, 30*40mm |
||
Air pressure |
0.6-0.8MP |
||
Print method |
Thermal printing |
||
Printing head life |
About 30 million labels(3000 roll) |
||
Print resolution |
203dpi |
||
Data transfer |
WIFI or USB flash drive |
||
Operation system |
Windows system |
||
Application Scenarios
This CNC automatic labeling machine is widely applicable to garment apparel, sportswear, home textiles, luggage fabrics and various flexible material processing industries. It is specially used for fabric position marking, tag labeling, size marking and identification printing. Suitable for small-batch customized production and large-scale mass production, it is essential intelligent marking equipment for modern textile smart factories.
FAQS
Q1: What is the biggest advantage of this labeling machine?
A: This machine adopts ribbon-free direct heat printing technology, which greatly saves your daily consumable costs. Meanwhile, it supports 800mm/s high-speed operation, Android intelligent file recognition and automatic data statistics, balancing high efficiency and low production cost.
Q2: Does the machine support CAD file import?
A: Yes. The built-in Android system is highly compatible and supports all conventional CAD file formats, allowing direct file import, identification and processing without secondary conversion.
Q3: Is remote control function practical for factory use?
A: Very practical. The remote control function supports remote parameter adjustment, equipment debugging and operation control, effectively saving on-site operation time and improving production flexibility.
Q4: What materials can this machine mark?
A: It fits all kinds of textile fabrics including knitted fabric, woven fabric, non-woven fabric, denim and other flexible materials, used for positioning marking, label printing and size identification.
Q5: How does the daily production report function help factory management?
A: The machine automatically records working data and generates daily production reports, which helps factory managers intuitively grasp daily output, working status and production efficiency, realizing digital and intelligent production management.
Q6: Is the dual servo drive stable for long-time working?
A: Yes. The servo dual-drive system provides strong power output, stable transmission and high repeated positioning accuracy, supporting long-term uninterrupted industrial operation with low failure rate.
