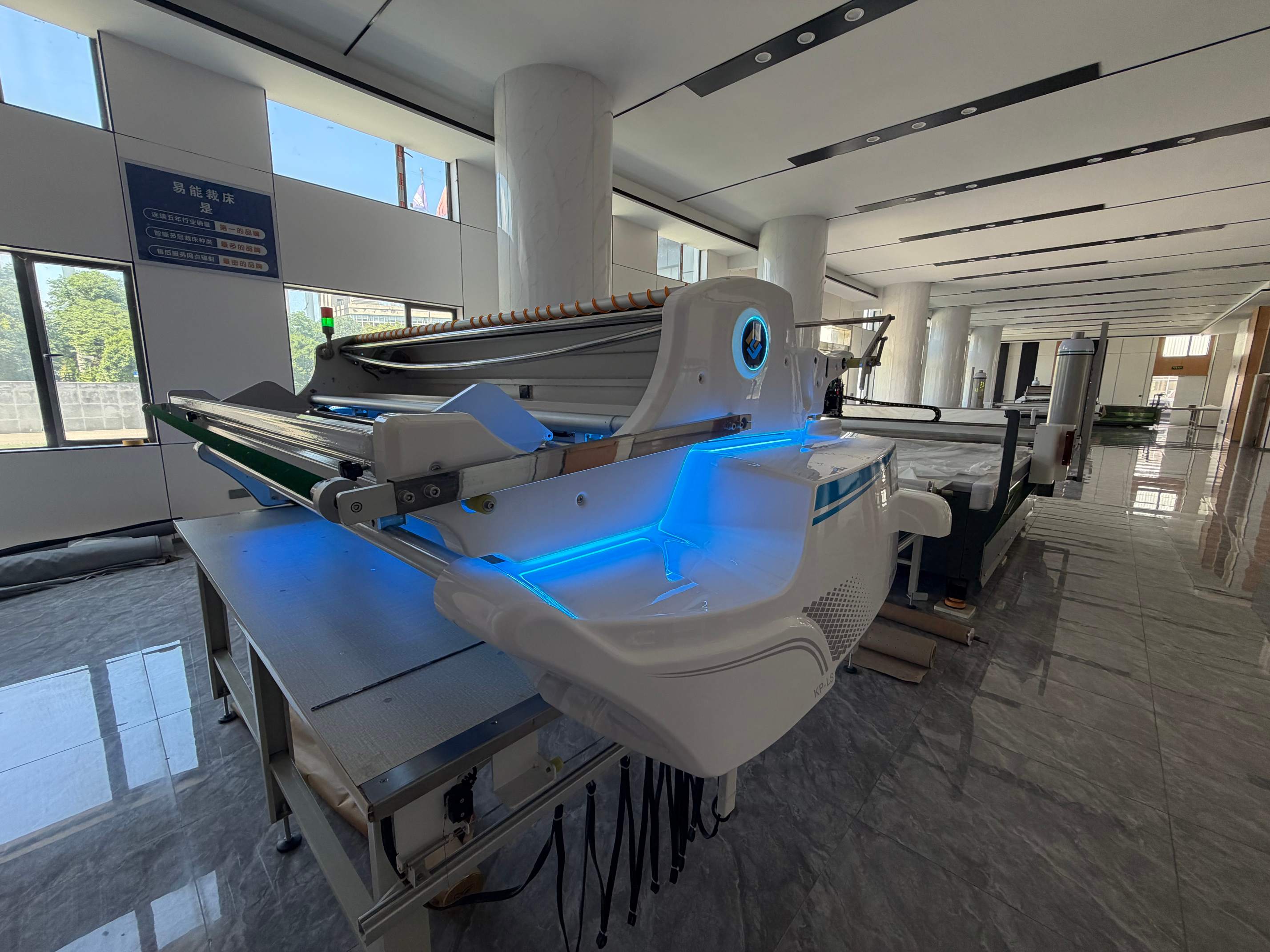

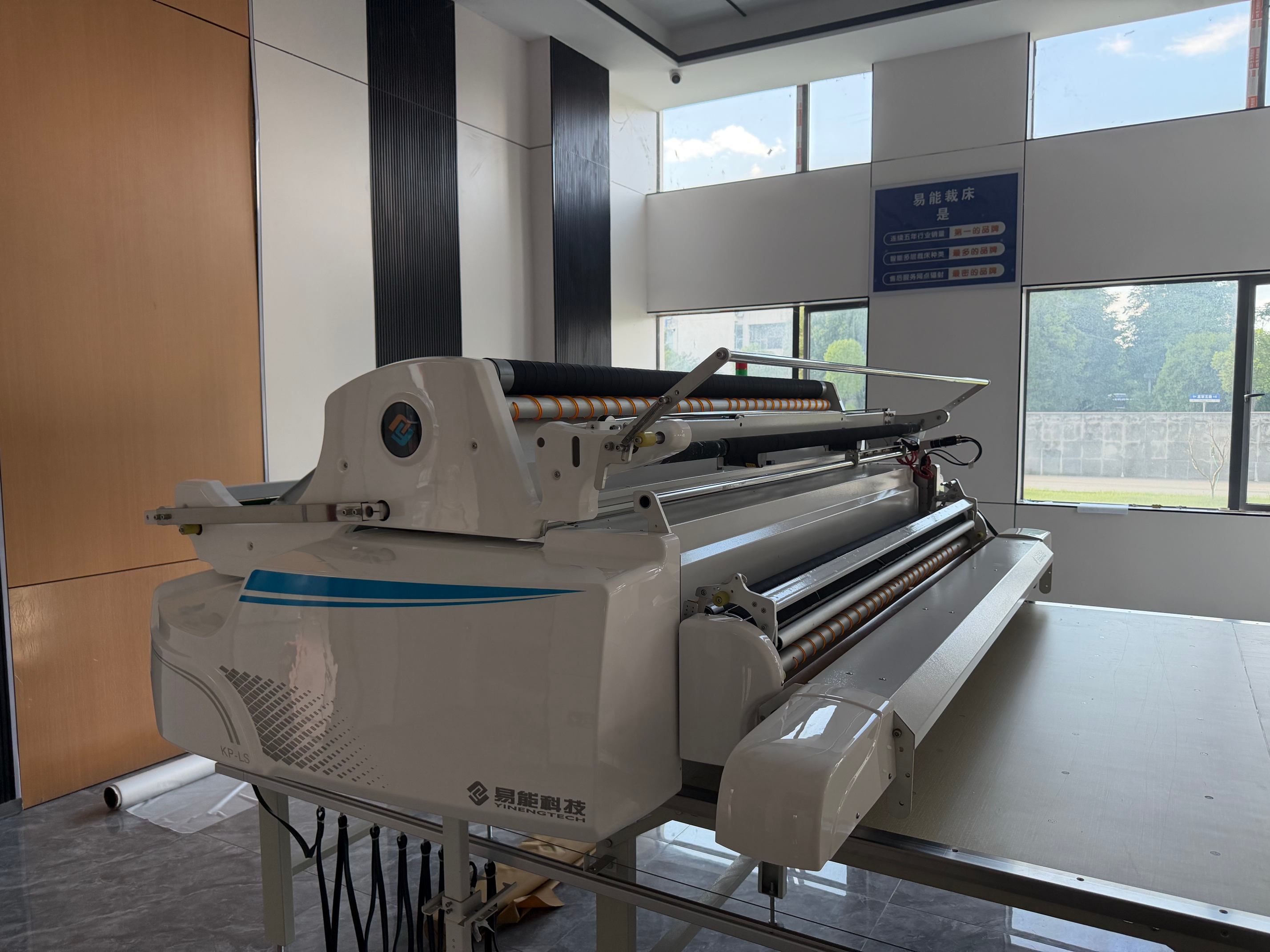

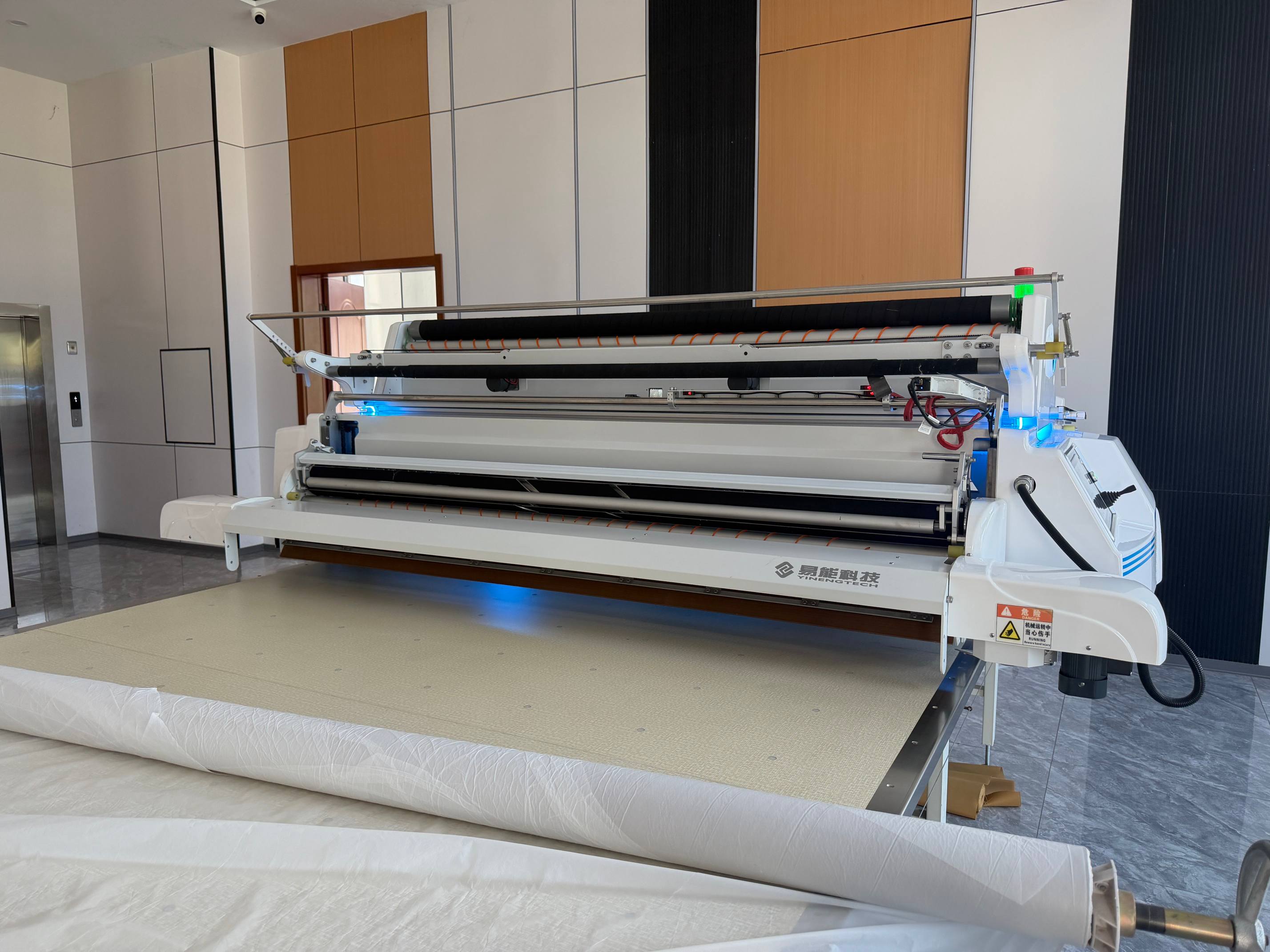

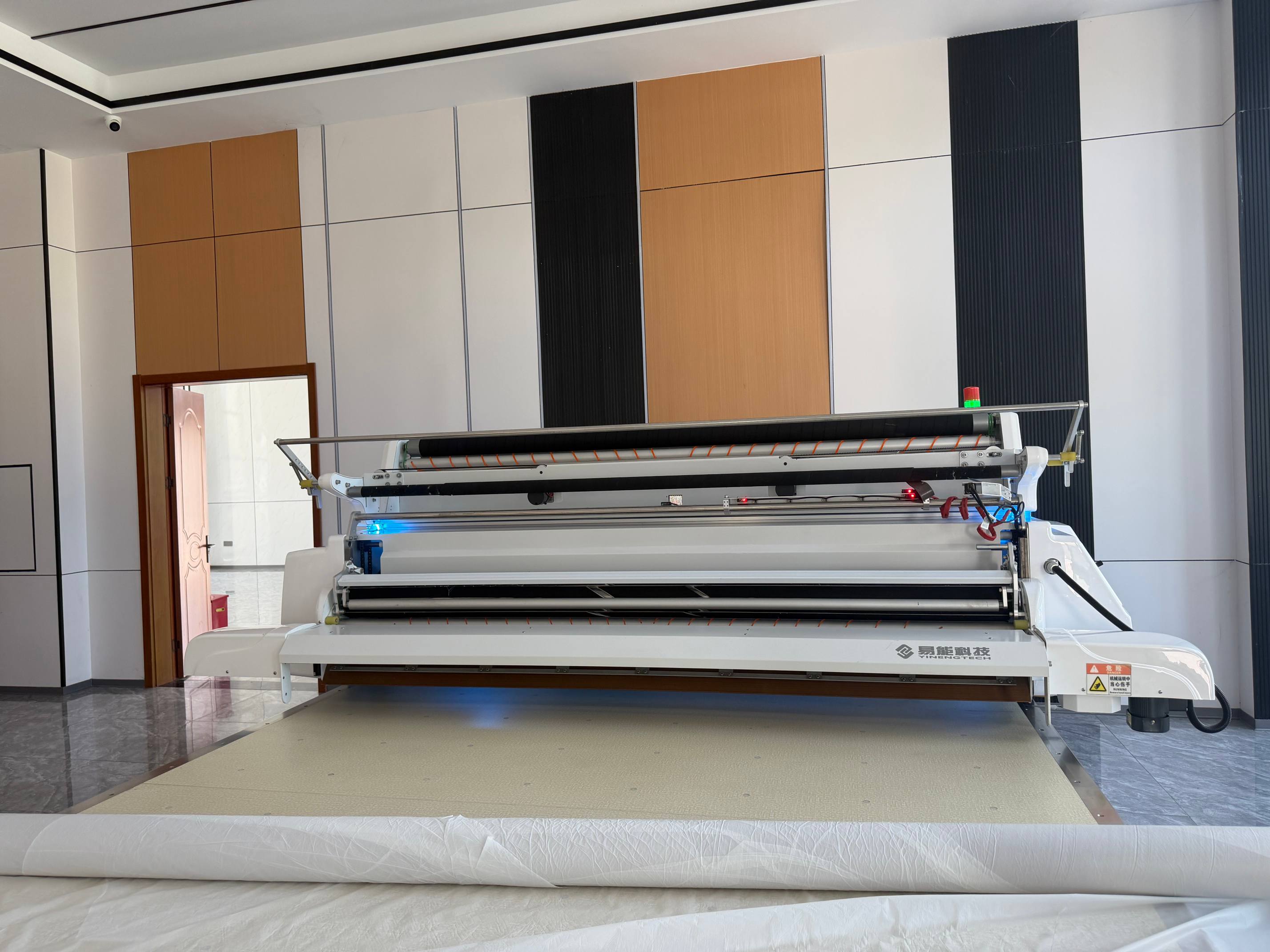

YINENGTECH KP-LS CNC Servo-Driven Multi-Layer Fabric Spreading Machine

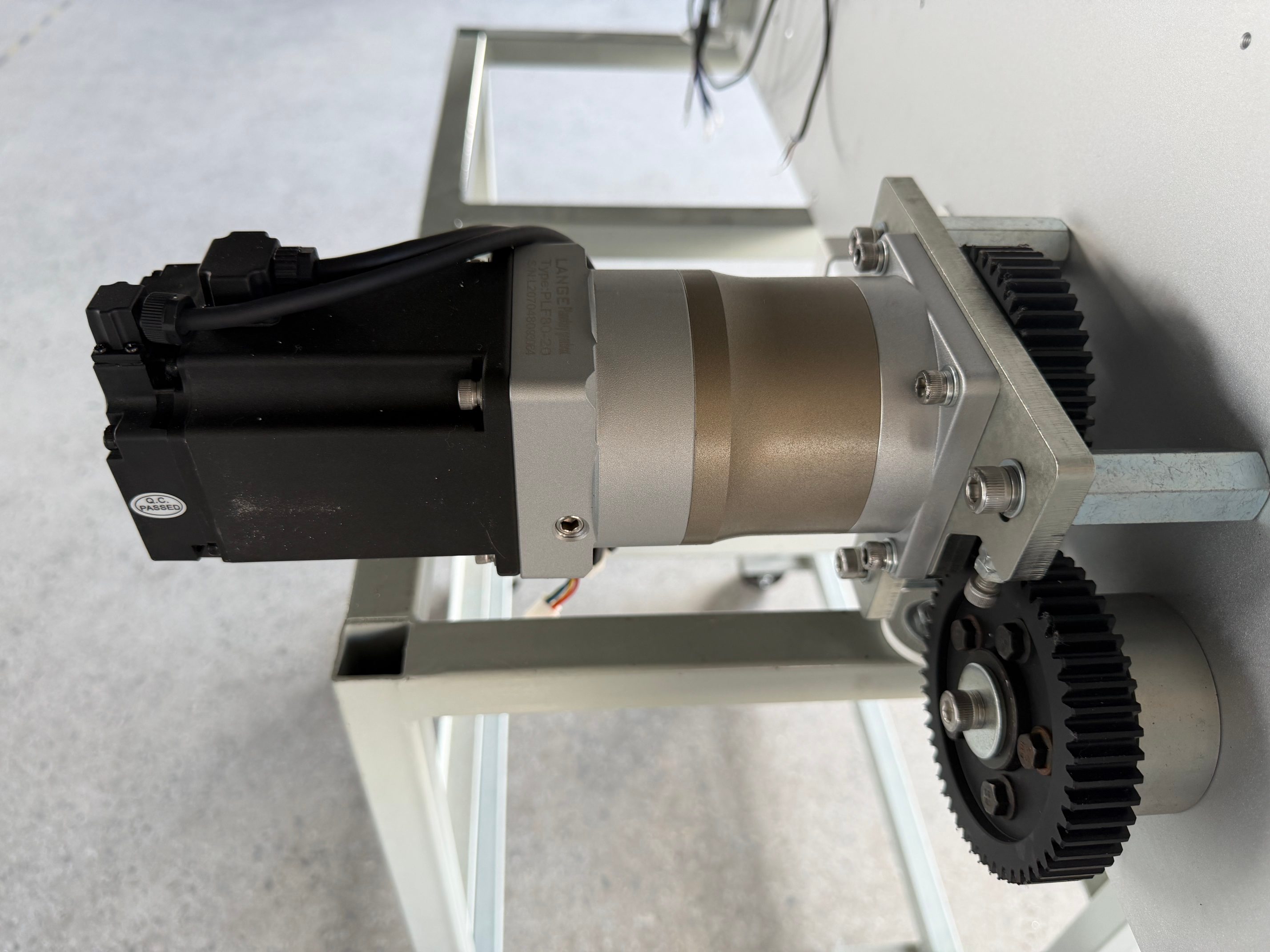

1. Synchronized Dual-Drive Servo System

The KP-LS CNC servo-driven fabric spreader is equipped with dual-drive servo traveling motors that eliminate left-right offset deviation and deliver powerful, consistent driving force. This advanced servo system enables maximum running speeds up to 120 m/min, ensuring efficient fabric spreading operations. The synchronized dual-motor configuration guarantees balanced load distribution and precise motion control throughout the entire spreading cycle.

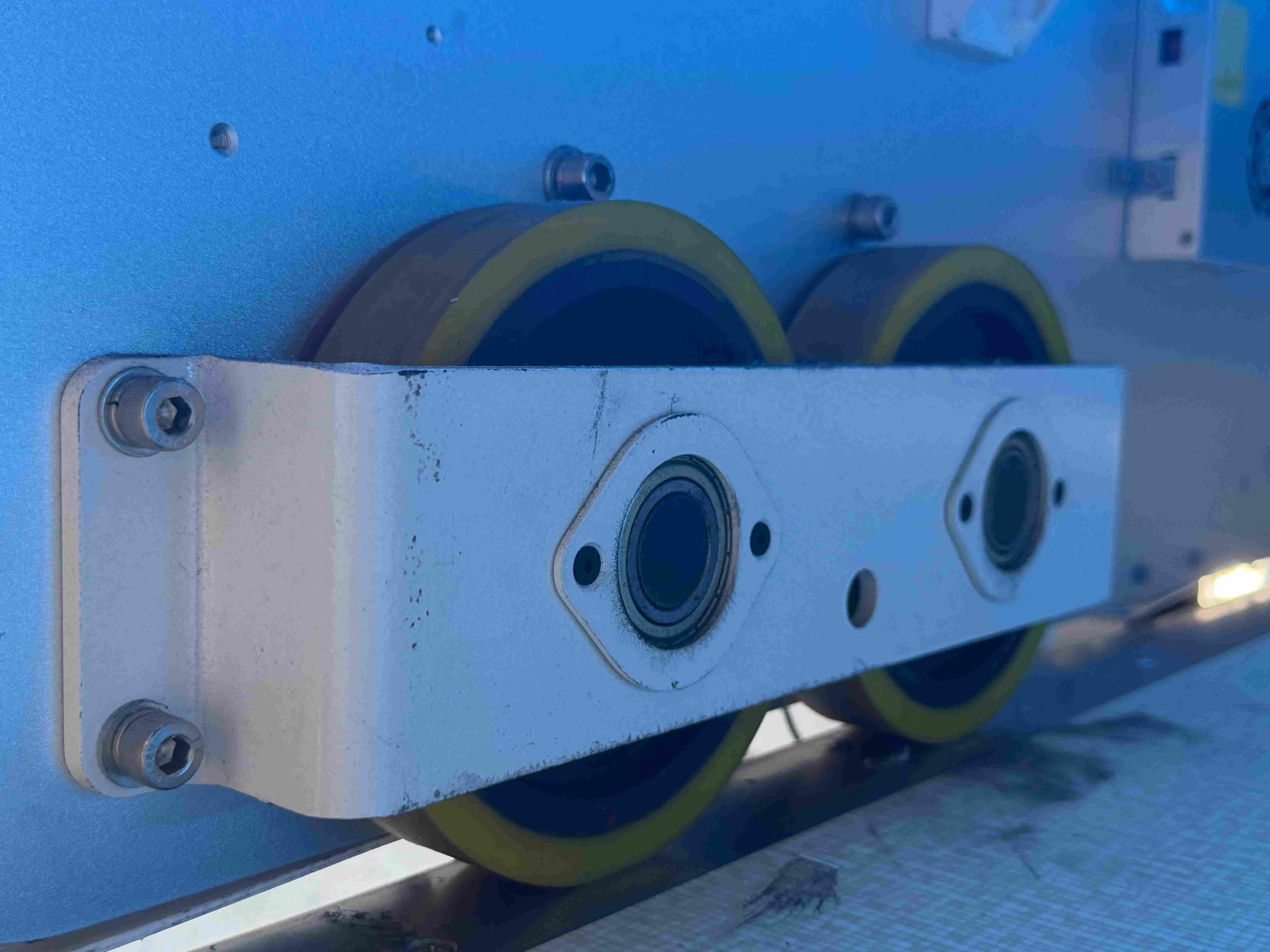

2. Independent Six-Wheel Travel Structure

This multi-layer fabric spreading equipment features a robust dual-drive four-wheel traveling design that ensures ultra-smooth operation and precise braking performance. The independent wheel structure maintains exceptional stability during high-speed fabric spreading, with cutting deviation controlled within just 1 mm. This precision engineering is critical for maintaining consistent layer thickness and alignment in automated fabric spreading applications.

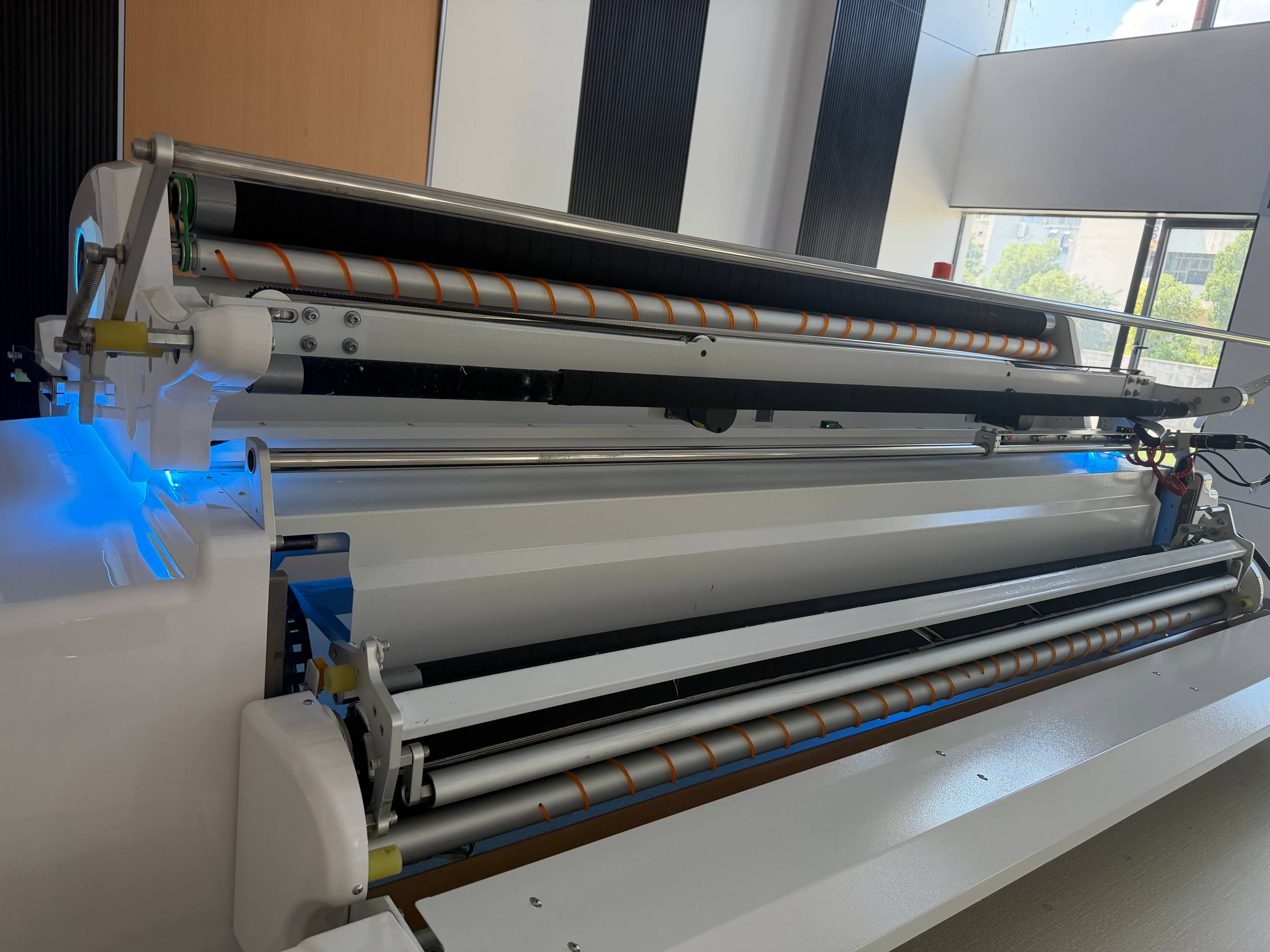

3. Multi-Rod Tension-Free Unwinding Device

The fabric bin incorporates a sophisticated multi-rod unwinding structure designed to maintain zero fabric tension during the entire spreading process. This innovative tension-free design supports seamless switching between knitted and woven materials without requiring parameter readjustments. The automated fabric spreading machine prevents fabric slippage, eliminating the need for repetitive calibrations and reducing operational downtime. The system accommodates diverse fabric types while maintaining consistent spreading quality.

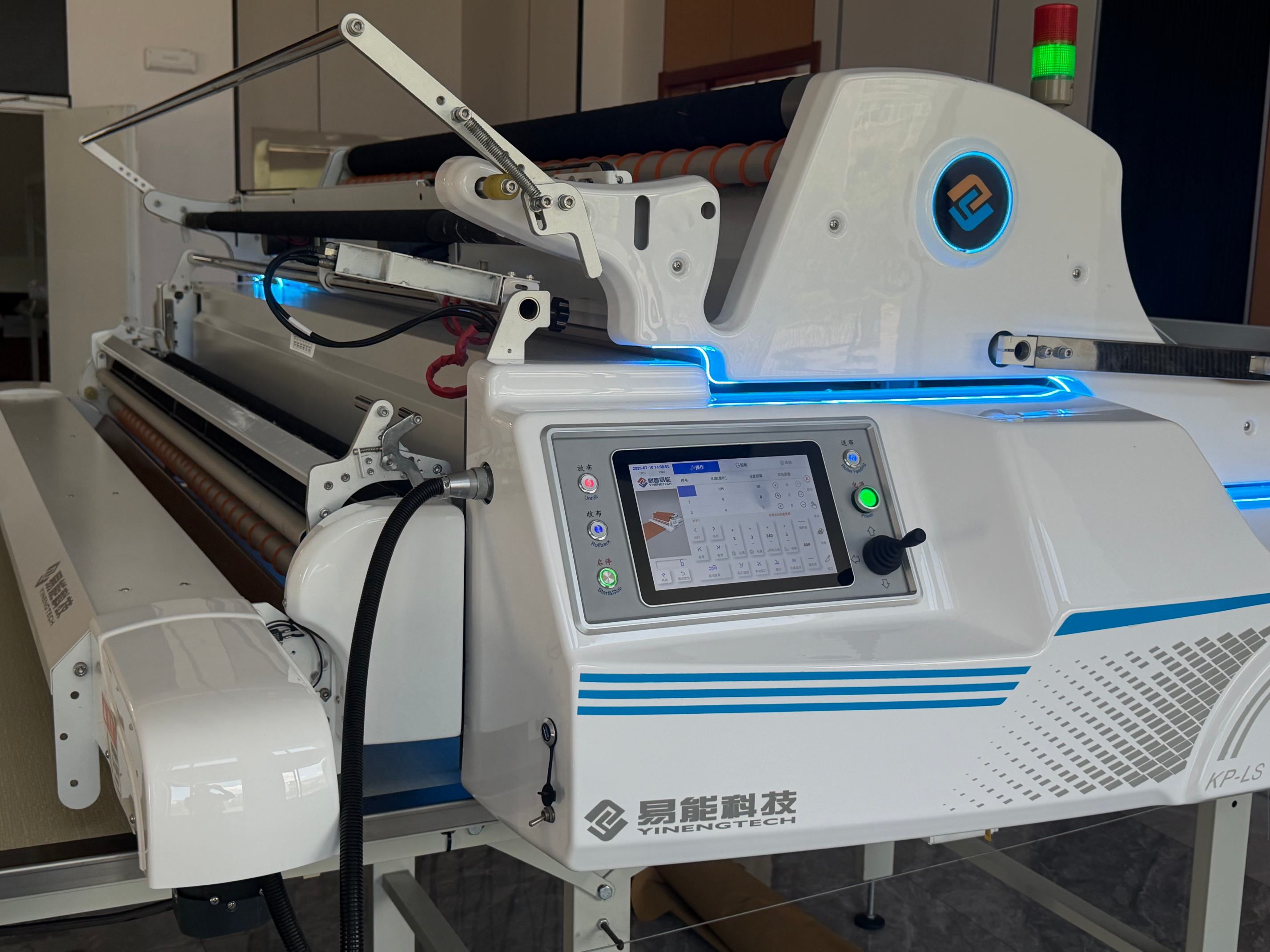

4. Self-Developed Intelligent Control System

The CNC servo-driven fabric spreader incorporates our proprietary intelligent control system featuring remarkable expandability and real-time IOT data interconnection capabilities. This self-developed platform enables seamless integration with existing production management systems and Industry 4.0 environments, providing manufacturers with unprecedented visibility and control over their spreading operations.

5. Full-Range Intelligent Recognition System

Our advanced automated fabric spreading machine integrates comprehensive intelligent modules including automatic fabric positioning, auto fabric collection, smart knife lifting, and fabric joint detection. These multifunctional systems work in concert to deliver fully autonomous operation, minimizing manual intervention and maximizing production throughput while ensuring consistent spreading quality.

Specifications

Features & Advantages

1. Auto Reset Function: The KP-LS fabric spreading machine automatically stops and returns to the home position after completing each fabric spreading cycle, enhancing operational efficiency and reducing manual oversight requirements.

2. Auto Power-Off Protection: The multi-layer fabric spreading equipment automatically shuts down if left idle for more than 5 minutes, providing energy savings and extending equipment lifespan through smart power management.

3. Emergency Stop Protection: Safety is paramount—the fabric will not be pulled or dragged once the emergency brake is triggered, protecting both material and personnel during emergency situations.

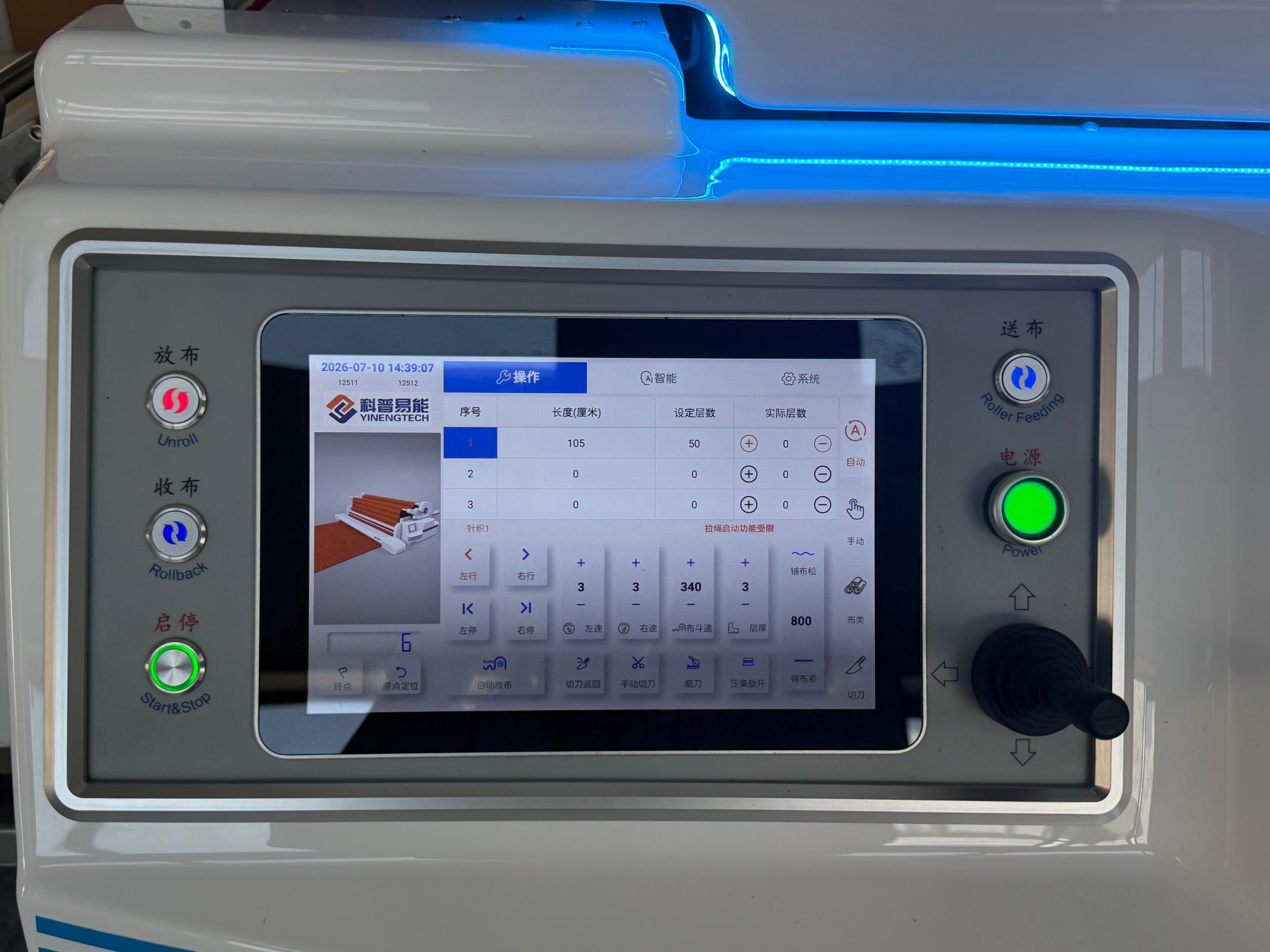

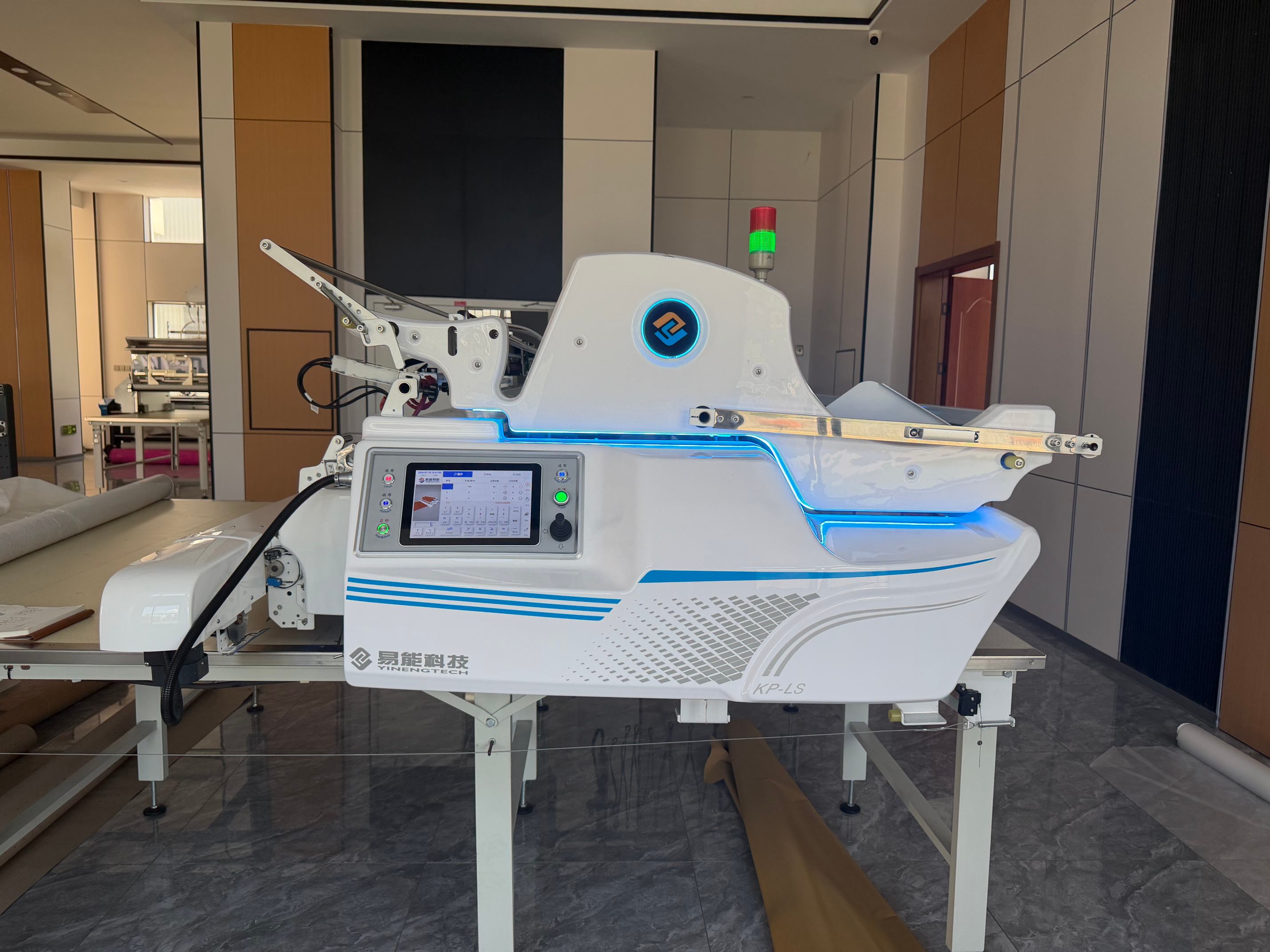

4. Taiwan Imported PLC Touch LCD Control Panel: The intuitive user interface ensures simple and convenient operation with minimal training requirements. Operators can quickly master the CNC servo-driven fabric spreader functionality through the responsive touchscreen interface.

5. Automatic Tension-Free Spreading System: The roller conveyor belt system delivers ultra-smooth layering without stretching or fabric dimensional distortion, ensuring consistent quality across all fabric types and production runs.

6. Dual & Single Pulling Split Structure: The flexible pulling configuration meets diverse spreading requirements, allowing operators to optimize the automated fabric spreading machine performance for specific production scenarios.

7. Built-In Automatic Sharpening Function: The system features adjustable knife row spacing and integrated blade maintenance, ensuring cutting performance remains optimal throughout extended production cycles.

8. Streamlined Body Design: The aerodynamic profile effectively reduces wind resistance, operating noise, and mechanical vibration, creating a more pleasant and safer production environment.

Analysis of Benefits

1. Boost Corporate Image & Order Competitiveness
Upgrading to the YINENGTECH KP-LS CNC servo-driven fabric spreader elevates your factory brand image and strengthens your competitive edge when bidding for major orders. Modern automated fabric spreading equipment demonstrates technological sophistication and production capability to international clients.

2. Stable Spreading Quality
Consistent tension-free spreading eliminates human errors such as uneven fabric placement, wrinkles, and misalignment. This multi-layer fabric spreading equipment guarantees uniform layering quality throughout production runs, reducing fabric waste and improving final product consistency.

3. Dramatically Improved Work Efficiency
Operating 10 hours daily, a single KP-LS automated fabric spreading machine can process approximately 10,000–12,000 meters of fabric, equivalent to the output of 4–6 manual workers. This dramatic productivity increase directly translates to reduced labor costs and faster production cycles.

4. Cut Fabric Waste & Lower Production Costs
The precise CNC servo-driven fabric spreader minimizes material loss, improving profit margins and strengthening negotiation advantages. Our practical data shows the fabric margin reserved per cutting bed is controlled within just 1.0cm. By saving approximately 3cm of fabric per layer, the machine delivers approximately $80 USD in daily material cost savings—a significant return on investment.

5. Extra Comprehensive Value
Full automation maximizes equipment utilization, boosts your workforce productivity, and enhances overall factory operational performance. The KP-LS fabric spreading machine integrates seamlessly into modern production environments, supporting lean manufacturing principles and continuous improvement initiatives.

Service Guarantee

Home Services | Packaging & Shipping

FAQ

Q1: What is your machine packaging standard?

A: We adopt strict three-layer export-grade packaging for all machines to ensure safe long-distance transportation. The outer layer uses standard fumigation-free plywood cases for firm protection and customs clearance convenience. The middle layer is filled with thick shockproof sponge to buffer vibration and extrusion during shipping. The inner layer is covered with thick waterproof and dustproof plastic film. This multi-layer packaging fully protects the machine from moisture, collision and damage during international transportation.

Q2: Is the packaging safe enough for overseas shipping?

A: Yes. Our packaging design takes all possible transportation risks into consideration, including vibration, dropping, moisture and extrusion. All packages are strictly inspected before shipment. We cooperate with experienced and professional international freight forwarders, ensuring stable and safe delivery to your destination.

Q3: Is the machine difficult to install? How do we start running the equipment?

A: No installation is required. Every machine is fully assembled, calibrated, and strictly tested in our factory before shipment. You will receive the completely finished machine. We provide detailed English operation manuals, full-set operation videos, and free online one-on-one technical training. Most of our customers master machine operation completely through online guidance. Factory visiting training is also available if needed.

Q4: What should I do if the machine has problems during use?

A: Please do not disassemble or repair the machine by yourself without professional guidance. Once any problem occurs, contact our support team immediately. We provide 24-hour online after-sales service and will respond quickly to analyze and solve your technical issues to ensure your production resumes as soon as possible.
