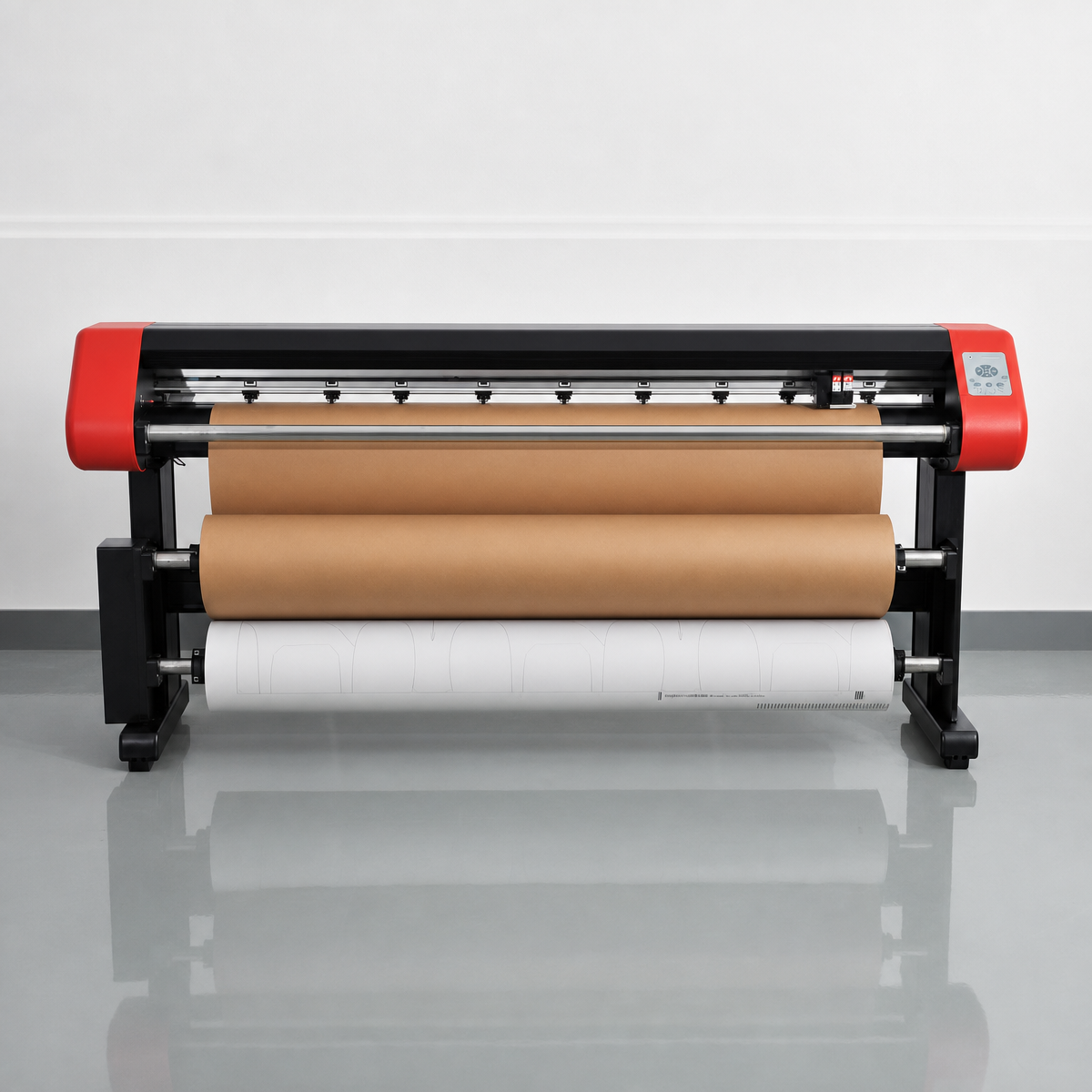

YINENGTECH Vertical Inkjet Cutting Plotter Print & Cut All in One Machine

Product Overview

YINENGTECH vertical inkjet cutting plotter is all in one print & cut device for garment cutting room. It can finish pattern drawing and contour cutting in one machine, saving separate plotter and cutter cost.

Adopts full aluminum moving carriage with intelligent heat dissipation. Users can freely toggle between drawing mode and cutting mode; cutting speed and cutting force are independently adjustable. Rip out software supports file contour extraction and corner angle compensation. Built in hidden front media take up system optimizes workshop floor space.

Support double roll paper simultaneous installation, switch between printing and cutting work at any time to double working efficiency. HP45 double cartridges with self cleaning function. Step motor or servo motor for optional configuration. Compatible with HGPL / HGPL 2 format, USB2.0 & network printing, supports Windows7 11 for mainstream garment CAD software.

FEATURES AT A GLANCE

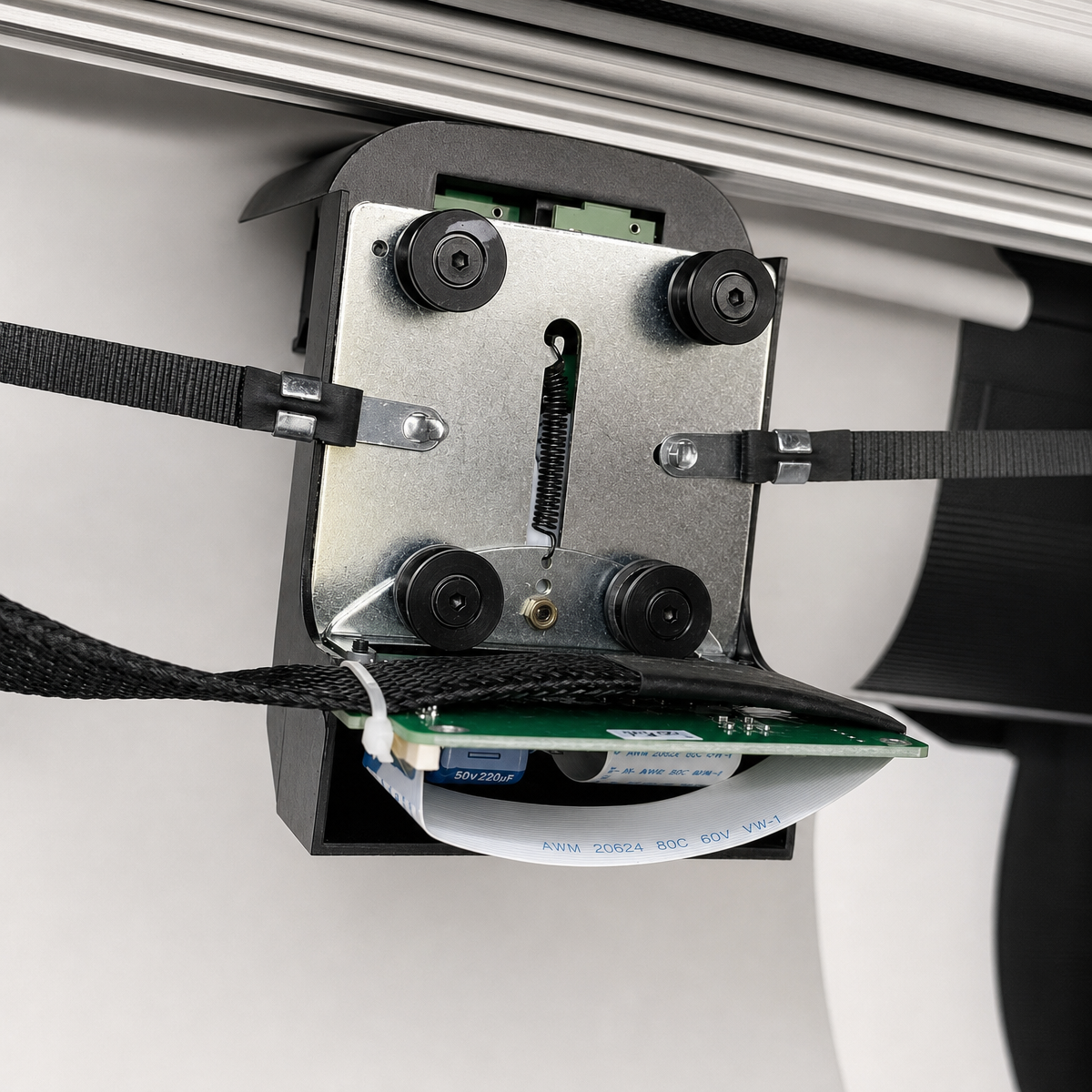

• Allaluminum Carriage with Intelligent Heat Dissipation
Whole aluminum moving carriage guarantees stable running, builtin auto heat dissipation for longtime continuous operation.

• Free Switch PrintCut Mode, Independent Parameter Adjustment
Switch drawing / cutting function freely; cutting speed and cutting pressure can be adjusted separately for different paper materials.

• Contour Extraction & Corner Compensation
Ripout software reads file contour profile, adjustable angle compensation for sharp corner precision.

• Front Hidden Media Takeup System
Internal frontmounted paper takeup structure, occupies less workshop space.

• Doubleroll Paper Install, Double Working Efficiency
Install two paper rolls at the same time, switch print task and cut task instantly.

• HP45 Double Cartridges with Selfcleaning
Dual HP45 ink cartridges, selfcleaning nozzle function to avoid clogging.

• Step / Servo Driving Optional
Choose stepper motor for costeffective solution or servo motor for higherprecision heavyduty work.

• USB2.0 + Network Printing Port
Supports local USB and LAN network printing for multicomputer workshop.

Specifications

Application Scenarios:

Perfect for garment factories, pattern making studios, luggage and home textile manufacturers. Complete garment pattern drawing and contour cutting in one device, suitable for pattern paper, kraft paper plot cut integrated processing.

FAQS

Q1: What is the advantage of print cut all in one plotter?
A: One machine completes pattern drawing and contour cutting, no need to buy separate plotter and cutting machine, saves equipment investment and workshop space.

Q2: Does it support double roll paper?
A: Yes. Two paper rolls can be mounted simultaneously, you can switch printing and cutting tasks any time, greatly improve working efficiency.

Q3: Driving motor: stepper or servo? Which one to pick?
A: Stepper motor is cost effective for regular workload. Servo motor runs quieter with higher precision for long time heavy duty continuous production.

Q4: Can I adjust cutting force and cutting speed?
A: Yes. Cutting speed and cutting pressure are fully independent adjustable, adapt for different thickness pattern paper.

Q5: What software & format does it support?
A: Adopts HGPL / HGPL 2 language format, compatible with most garment CAD software, works on Windows7 11, supports USB2.0 and network printing.

Q6: Is 110V power version available?
A: Yes, AC110V power supply is optional for overseas markets.
