Product Overview
YINENGTECH HP45 Inkjet Graphplotter is built for garment factories and patternmaking studios for 1:1 paper pattern and marker layout output. It adopts proven HP45 ink cartridge solution, with optional doublespray or quadruplespray print heads to boost printing efficiency.
Powered by digital highspeed servo control with full closedloop positioning, the machine runs stably for longhour industrial plotting. Practical functions include breakpoint resume printing, auto file queue printing and automatic printhead cleaning. Front automatic paperfeeding system reduces manual paperloading work. USB and network printing ports are available, fully compatible with Windows 711 and mainstream garment CAD software via HPGL format.
Two practical workingwidth selections: 1200mm for small sample rooms; 1900mm for standardwidth garment marker massproduction.
FEATURES AT A GLANCE

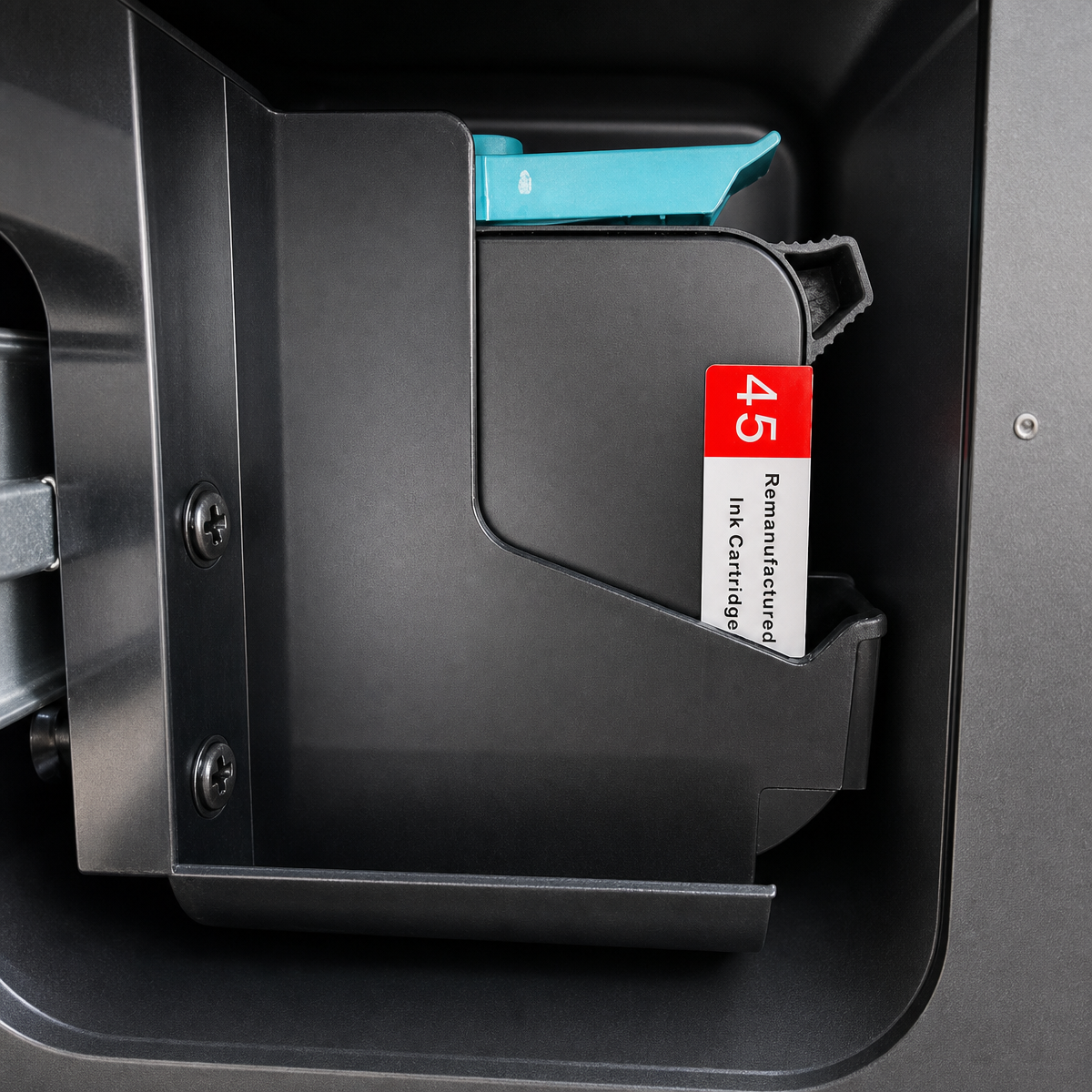

• Multibrand HP45 Ink Cartridge Compatible
Works with various market HP45 cartridges; doublespray / quadruplespray print heads optional for higher throughput.
• Two WorkingWidth Choices: 1200mm & 1900mm
Meet demands from samplemaking to standard bulk garment marker printing.
• Breakpoint Resume Printing
Continue plotting from breakoff point after data transmission failure, save paper and working time.
• Auto File Queue Printing
Independent output manager supports multiple files automatic queued printing.
• Automatic Printhead Nozzle Cleaning
Keep print head unclogged, maintain sharp pattern lines, lower manual maintenance.
• USB + Network Dualport Communication
Flexible wired connection for multicomputer workshop environment.

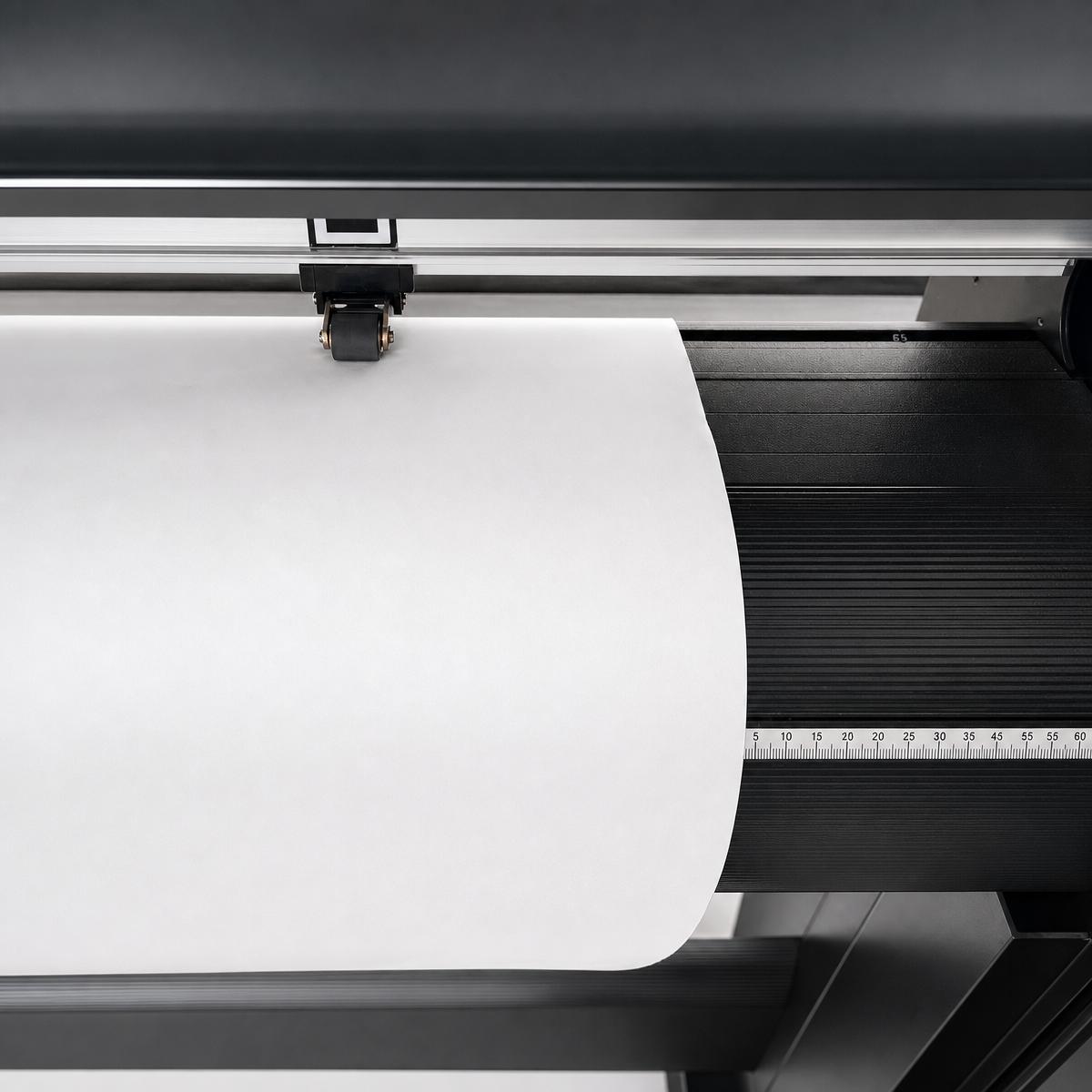

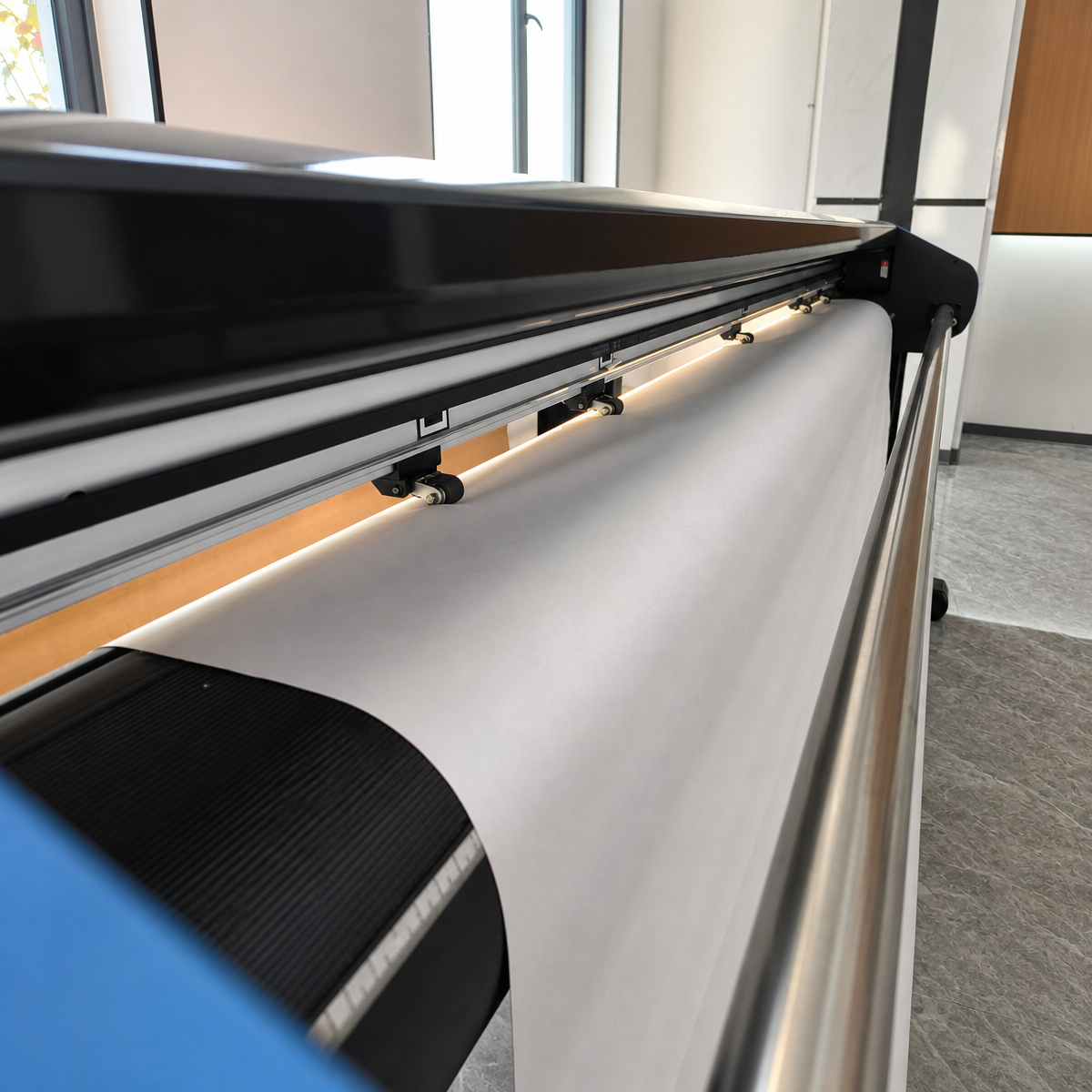

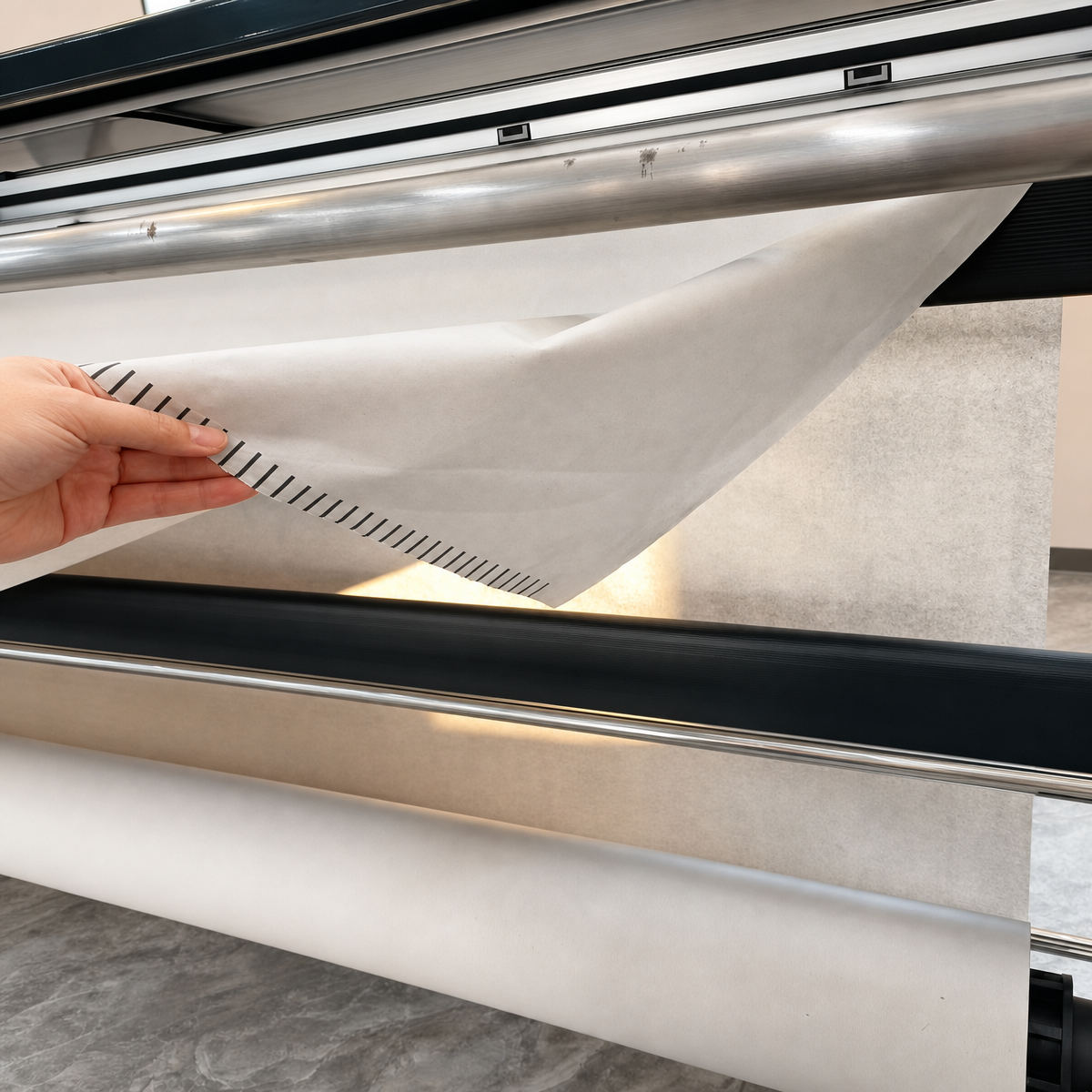

• Front Automatic Paperfeeding System
No paper rewinding required, great for batches of short marker prints.
• Digital Servo Closedloop Drive
Highspeed servo with full closedloop positioning, stable movement and consistent plotting accuracy.
Specifications
Item |
Specification |
|
Product Name |
HP45 Inkjet Graphplotter |
|
Available Model |
1200mm |
1900mm |
Max Paper Width |
1200mm |
1900mm |
Max Plotting Width |
1200mm |
1850mm |
Cartridge |
HP45; Doublespray / Quadruplespray optional |
|
Drive |
Digital highspeed servo control, full closedloop positioning |
|
Resolution |
150600DPI, tonersave mode optional |
|
Print Speed |
80120 m²/h, bidirectional printing |
|
Command Format |
HPGL |
|
Communication Port |
USB, Network printing |
|
Supported OS |
Windows7 / Windows8 / Windows10 / Windows11 |
|
Nozzle Cleaning |
Automatic cleaning function |
|
Paper Feed |
Front automatic paper feeding system |
|
Environment |
Temperature 1035℃, Humidity RH1585% (no condensation) |
|
Power |
AC220V 60Hz ≥400W; AC110V optional |
|
Size Selection Guide
Model |
Application Recommendation |
1200mm |
Small sample room, pattern development, narrowwidth pattern, lowvolume production |
1900mm |
Standard garment factory, regularwidth marker layout, mediumlarge batch plotting |
Application Scenarios:
Fit for garment factories, sportswear workshops, luggage & hometextile manufacturers, patternmaking studios. For garment paper pattern printing, marker layout output and cuttingroom preproduction preparation.
FAQS
Q1: What cartridges fit this graphplotter?
A: Standard HP45 cartridges, supports multiple thirdparty brands. Doublespray and quadruplespray print heads are optional for faster output.
Q2: How to choose between 1200mm and 1900mm?
A: Pick 1200mm for small sample lab and narrow patterns. Select 1900mm if you print standard fullwidth garment markers for daily mass production.
Q3: Does it support network printing?
A: Yes, both USB and network printing are supported for multiPC workshop use.
Q4: What happens when printing data gets interrupted?
A: Breakpoint resume function enables the machine to continue printing from the stopping position without restarting the whole file.
Q5: Which CAD software can work with this plotter?
A: It uses HPGL command format, compatible with most mainstream garment CAD software, supports Windows711.
Q6: Is 110V power option available?
A: Yes, AC110V version is optional for overseas markets.
