YINENGTECH Nylon Bristle Block | DualSize Replacement for CNC Fabric Auto Cutter
YINENGTECH nylon bristle blocks are consumable table spare parts for automatic fabric cutting machines. Two available sizes: standard 100×50×45mm and heavy duty 100×50×50mm, black / white optional. Protect cutting blades and maintain stable vacuum suction for garment textile production.
- Overview
- Recommended Products
Product Business Terms
Product Name |
Bristle Block |
Color |
Black / White |
Place of Origin: |
China |
Brand Name: |
YINENGTECH |
Dimension |
100 × 50 × 45 mm/100 × 50 × 50 mm |
Weight |
9.5 kg/box (100pcs) |
Material |
Nylon |
Shape |
Rectangular |
Compatible Machine |
YINENGTECH CNC Fabric Auto Cutter |
Minimum Order Quantity: |
1 box (100pcs) |
Feature |
Resistant to tensile, compression and impact |
Applicable Material |
Knitted, woven, non woven, denim, thick layered flexible textiles |
Delivery Time: |
7-15 days after order confirmed |
After sales Service Provided |
Online Support/Video Technical Support |
Product Overview

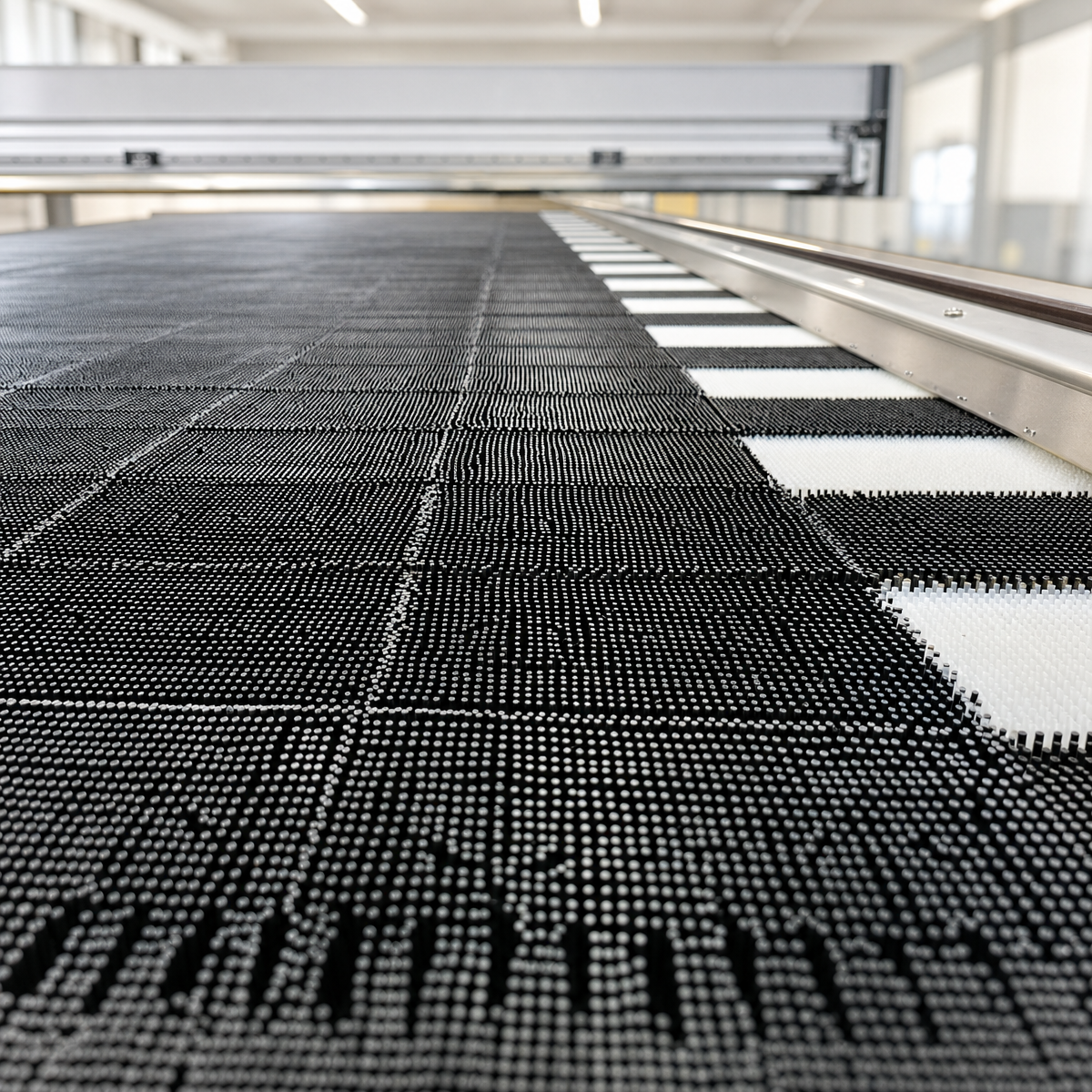

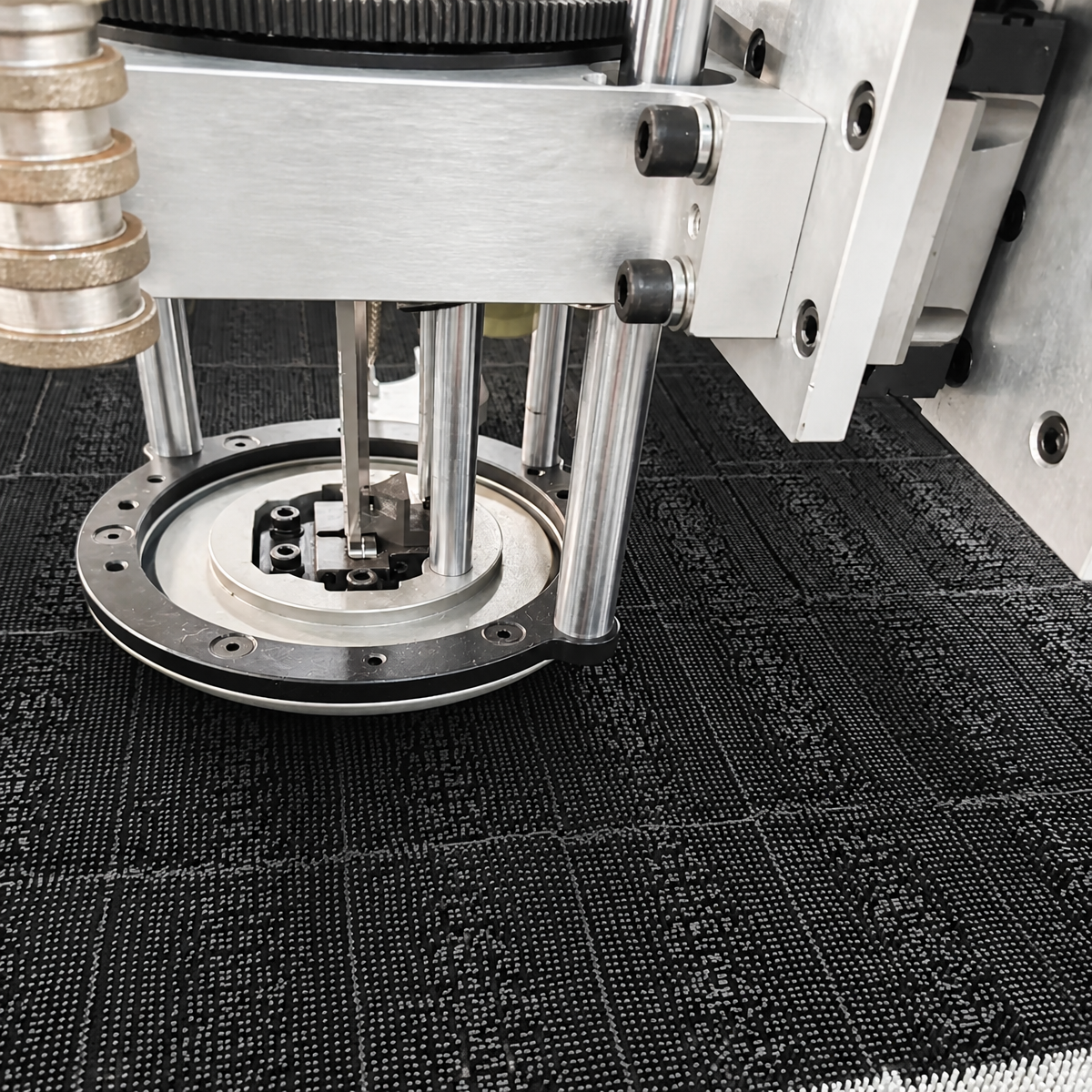

YINENGTECH nylon bristle block is a key wearing spare part for CNC automatic fabric cutting equipment. Made of high density durable nylon bristles, it supports fabric stacks during cutting, allows oscillating knife to penetrate without damage, and retains vacuum suction to fix materials firmly on cutting table.
We provide two dimension options: 100×50×45mm and 100×50×50mm. The 45 mm height fits general thickness fabric cutting. The upgraded 50 mm height delivers deeper knife penetration allowance, better buffer performance, ideal for frequent thick multi layer fabric processing. Both sizes offer black and white color choices, same material quality, easy to install structure for quick on site replacement.
FEATURES

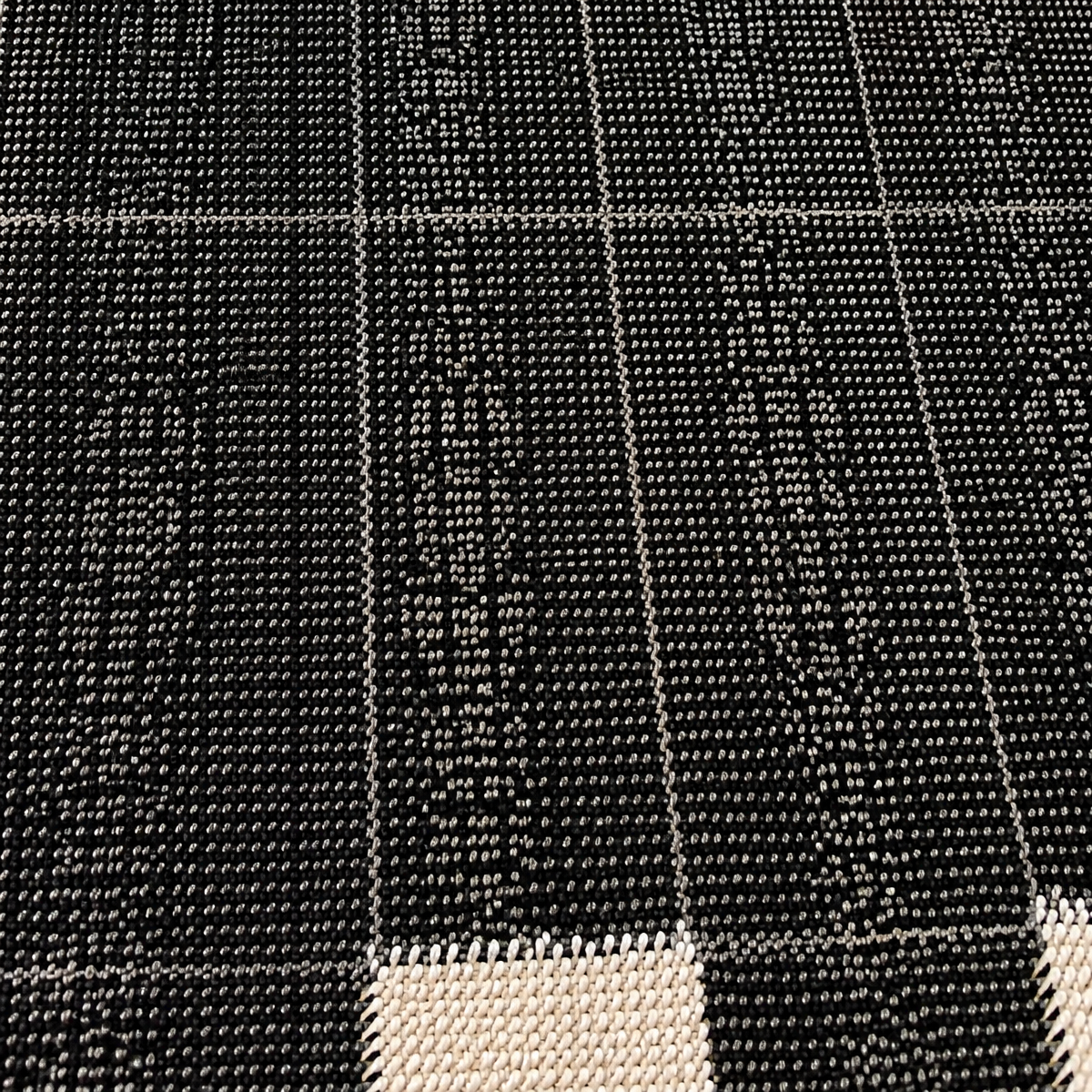

• High Density Nylon Bristles
Excellent wear resistance and resilience, anti collapse under long time continuous cutting.
• Two Size Options Available
Standard 100×50×45mm for regular cutting; heavy duty 100×50×50mm for thick multi-ply fabric stacks.
• Black & White Color Selection
Identical performance, different colors for workshop marking and batch management.
• Cutting Blade Protection
Elastic bristle buffer lowers knife impact, reduces blade abrasion and extends tool service life.
• Stable Vacuum Suction Retention
Even gaps between bristles guarantee consistent airflow, prevent fabric shifting in high speed cutting.
• Fast Installation & Replacement
Standard outer dimension, simple swap operation, reduce machine downtime.
Specifications
Model.No |
KP D200 |
KP D210 |
Max Fabric Width |
2000mm |
2100mm |
Table Width(mm) |
223±3 |
233±3 |
Machine Size(mm) |
2900*695*555 |
3000*695*555 |
Package Size(mm) |
3050*810*520 |
3150*810*520 |
Weight |
268KG |
276KG |
Labeling speed |
800mm/s, 32pcs/min |
|
Power Supply |
Alternating current 220V/50 60Hz |
|
Spindle power |
1.5kw |
|
Max working height |
0 165mm |
|
Compatible formats |
NC/DXF/CUT/GBR/TAC/DAT |
|
Label specifications |
1000 labels/volume, 30*40mm |
|
Air pressure |
0.6 0.8MP |
|
Print method |
Thermal printing |
|
Printing head life |
About 30 million labels(3000 roll) |
|
Print resolution |
203dpi |
|
Data transfer |
WIFI or USB flash drive |
|
Operation system |
Windows system |
|
Application Scenarios:
Widely used in garment factories, sportswear workshops, luggage processing, automotive interior and plush toy manufacturing. Choose corresponding size according to your actual fabric stacking thickness. Regular replacement keeps cutting precision and minimizes defective rate.
FAQS
Q1: What is the difference between 100×50×45mm and 100×50×50mm bristle block?
A: The main difference is height. 100×50×45mm is standard for common thickness fabrics. 100×50×50mm is thicker, provides deeper knife penetration space and better buffer, better for thick multi ply fabric cutting.
Q2: Can I mix two different height bristle blocks on one cutting table?
A: Mixing different heights is not advised. Uneven table surface will damage vacuum suction and reduce cutting accuracy. Please install blocks of the same dimension.
Q3: Are black and white bristle blocks different in quality?
A: Raw material and performance are exactly the same. Color is only for workshop identification purposes.
Q4: How do I select the correct size for my machine?
A: Check your original bristle block dimension or confirm your maximum fabric stacking thickness. Pick 45 mm for regular cutting; choose 50 mm if you frequently cut thick fabric stacks.
Q5: Do these bristle blocks fit other brands cutting machines?
A: Designed for YINENGTECH auto cutter. Confirm dimension and mounting size before ordering for third party equipment.
Q6: How to prolong bristle block service life?
A: Clear fabric scraps trapped in bristles regularly. Avoid excessive cutting depth cutting into bristle base, keep cutting table clean.
