YINENGTECH CNC Auto Labeling Machine | Intelligent Fabric Marking and Labeling System
YINENGTECH CNC auto labeling machine is an intelligent fabric marking system equipped with Android control, remote operation and automatic production data reporting. It helps garment factories realize digital, efficient and accurate fabric labeling management.
- Overview
- Recommended Products
Product Business Terms
Place of Origin: |
China |
Brand Name: |
YINENGTECH |
Model Number: |
KP-D220,KP-D240 |
Minimum Order Quantity: |
1 |
Product Overview

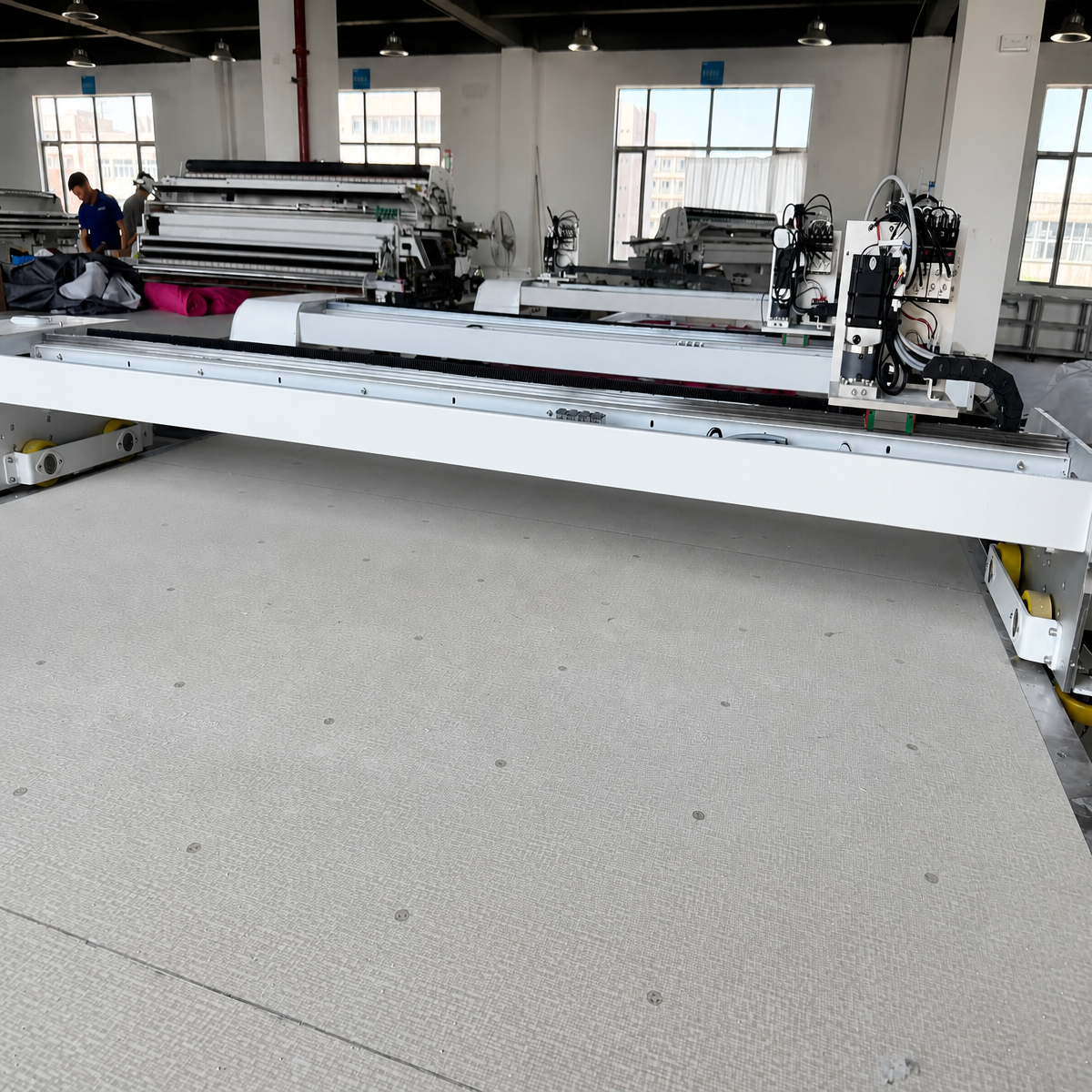

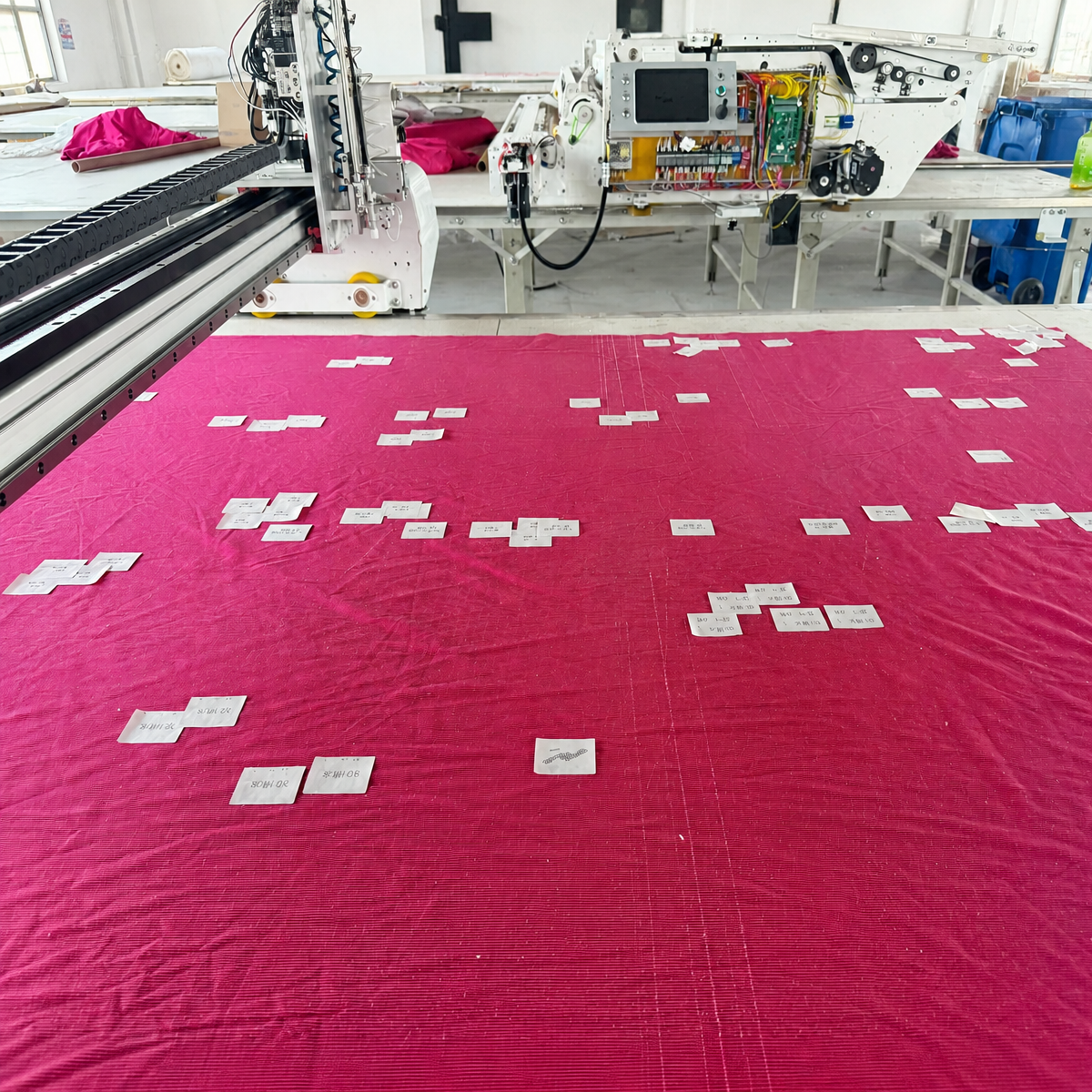

The YINENGTECH CNC Auto Labeling Machine is developed as an intelligent marking and labeling system for modern garment and textile factories. It combines CNC positioning, heat printing, intelligent file processing and production data management into one equipment, helping factories reduce manual operations and improve overall production efficiency.
The machine is equipped with an Android operating system, which can easily import and process various CAD design files. Operators can complete parameter setting, pattern preview and production monitoring through the 10.1-inch touch screen. With remote control function, managers can also adjust and control the equipment more flexibly on the production site.
One of the most important features is its automatic data collection and daily report function. The machine can record production data in real time, generate daily reports and provide reliable data support for factory production scheduling, efficiency analysis and quality management.
FEATURES AT A GLANCE
• Intelligent Android System
Built-in Android platform supports multiple CAD file formats, making pattern import and production setup more efficient.
• Remote Control Operation
Supports remote equipment control and parameter adjustment, improving on-site flexibility and management efficiency.
• 10.1-Inch Interactive Touch Screen
Intuitive touch interface provides clear operation experience, real-time status display and quick parameter setting.
• Data Collection and Daily Report
Automatically records production data and generates daily reports, supporting digital factory management.
• High-Speed Marking Performance
Max working speed up to 800mm/s, meeting the requirements of large-scale and continuous production.
• Ribbon-Free Heat Printing
Direct heat printing without thermal transfer ribbon reduces consumable cost and simplifies daily maintenance.

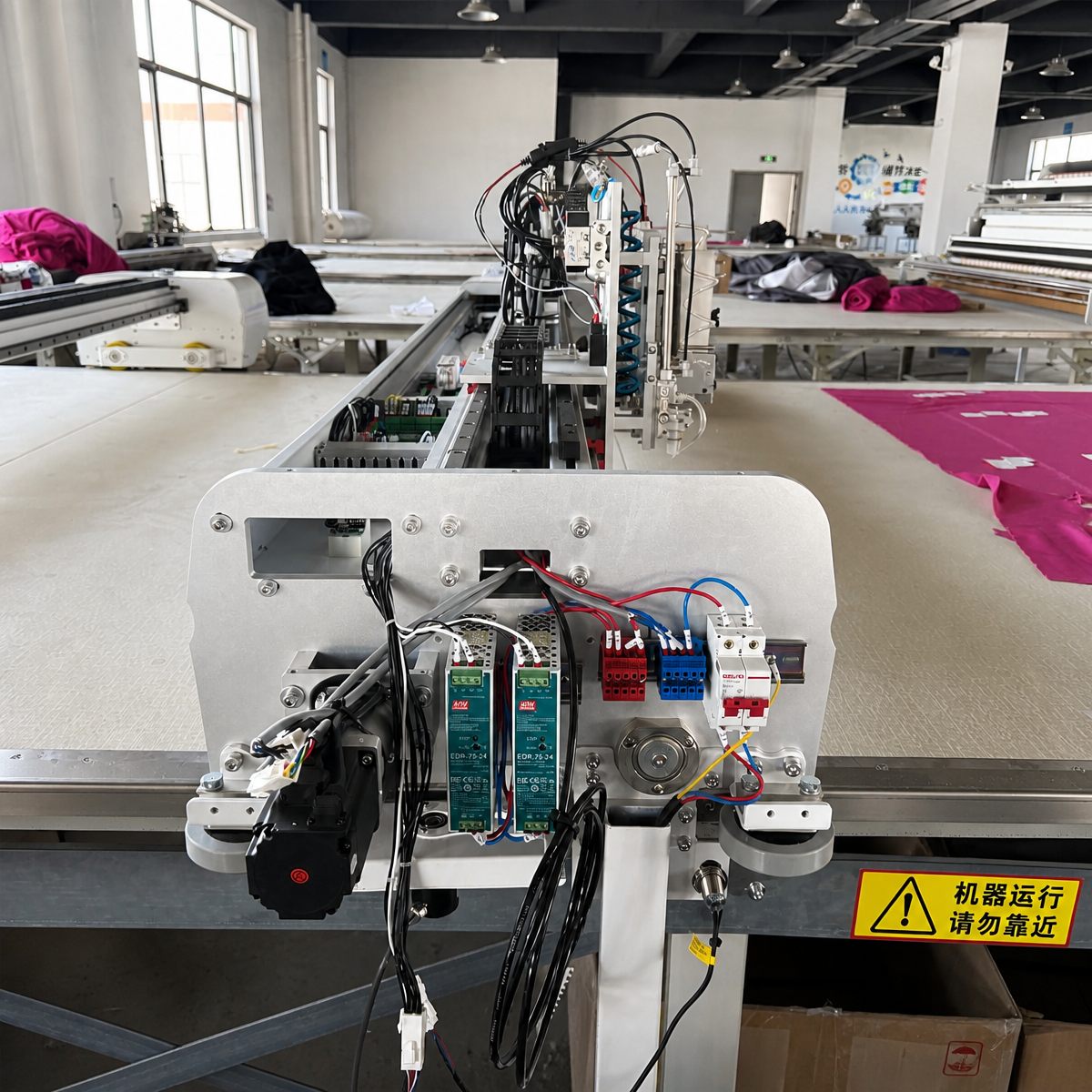

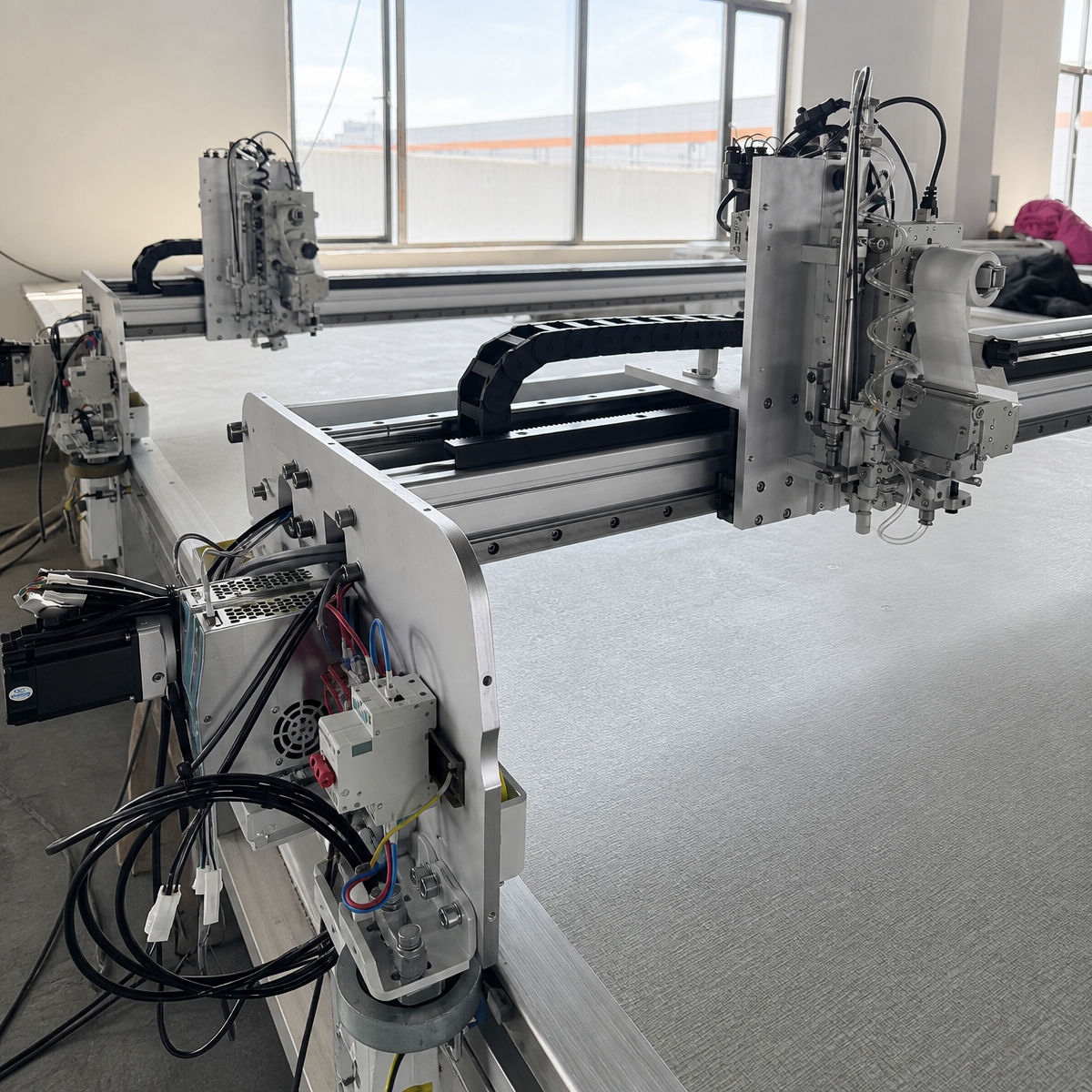

• Dual Servo Drive Control
Servo dual motor system ensures stable operation, high precision and long service life.
Applications
This machine is suitable for garment factories, sportswear factories, home textile workshops, luggage processing plants and other textile manufacturing environments. It is especially recommended for factories that want to upgrade to intelligent production management, reduce manual recording and improve production traceability.
Specifications
Model.No |
KP-D220 |
KP-D240 |
Max Fabric Width |
2200mm |
2400mm |
Table Width(mm) |
243±3 |
263±3 |
Machine Size(mm) |
3100*695*555 |
3300*695*555 |
Package Size(mm) |
3250*810*520 |
3450*810*520 |
Weight |
284KG |
300KG |
Labeling speed |
800mm/s, 32pcs/min |
|
Power Supply |
Alternating current 220V/50-60Hz |
|
Spindle power |
1.5kw |
|
Max working height |
0-165mm |
|
Compatible formats |
NC/DXF/CUT/GBR/TAC/DAT |
|
Label specifications |
1000 labels/volume, 30*40mm |
|
Air pressure |
0.6-0.8MP |
|
Print method |
Thermal printing |
|
Printing head life |
About 30 million labels(3000 roll) |
|
Print resolution |
203dpi |
|
Data transfer |
WIFI or USB flash drive |
|
Operation system |
Windows system |
|
FAQS
Q1: What makes this machine suitable for smart factories?
A: It supports Android system, remote control, data collection and daily report generation, which helps factories realize digital production management.
Q2: Can it import CAD files directly?
A: Yes. The Android system supports all common CAD file formats.
Q3: Does it require thermal transfer ribbon?
A: No. It uses direct heat printing without thermal transfer ribbon.
Q4: How does the report function help production management?
A: It automatically records production data and generates daily reports, which helps managers grasp output, efficiency and production status.
Q5: Is remote control useful for factory operation?
A: Yes. It facilitates remote parameter adjustment, equipment debugging and production control on site.
